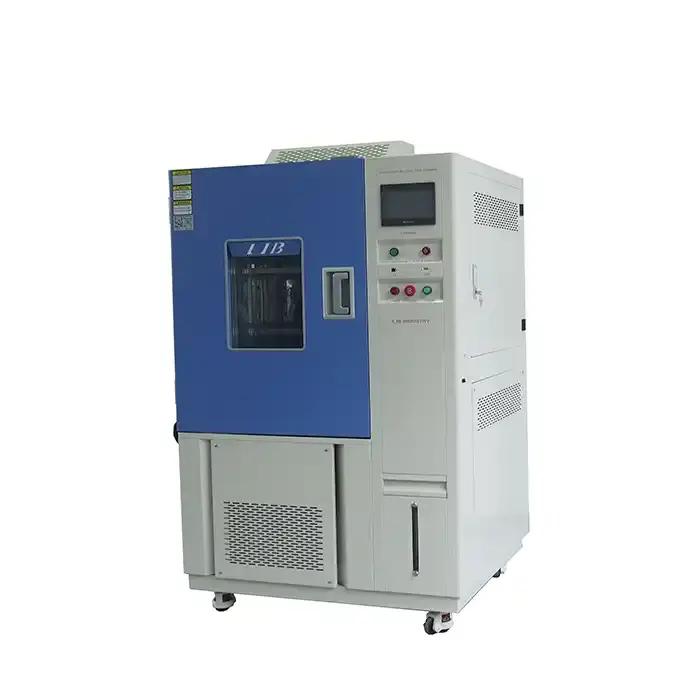

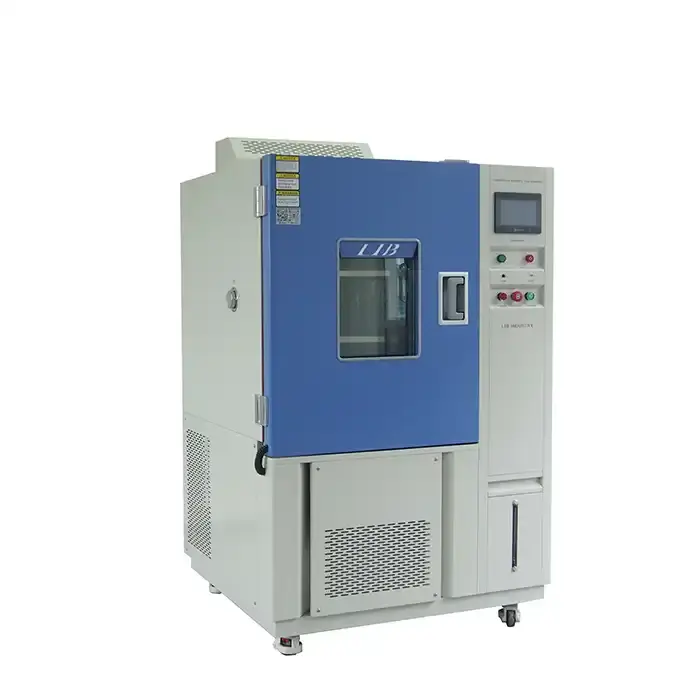

Laboratory Humidity Chamber
Model: TH-800
Lowest Temperature: -20℃/-40℃/-60℃/-86℃;
Temperature Range:-86℃～+150 ℃;
Refrigerant: Environmental refrigerant;
Temperature and Humidity condition
Touch-screen programmble controller,Ethernet access
High-Precision Laboratory Humidity Chambers
Engineered by Xi'an LIB, these ICH-compliant laboratory humidity chambers deliver pharmaceutical-grade climate control for stability testing, quality assurance, and material research. By integrating advanced refrigeration, water bath technology, and intelligent sensors, these systems eliminate environmental variability to precisely simulate real-world climates—from tropical humidity to desert dryness.
They are essential for evaluating how products and materials react to specific climatic scenarios, providing the accuracy and reliability required for critical research.
Key Applications
Pharmaceutical Research: Conducting long-term drug stability studies and validating product shelf life.
Material Science & Packaging: Testing material degradation and ensuring packaging protects goods in humid climates.
Electronics & Quality Control: Evaluating component reliability and performance under strict temperature cycling.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Deatils
|
|
|

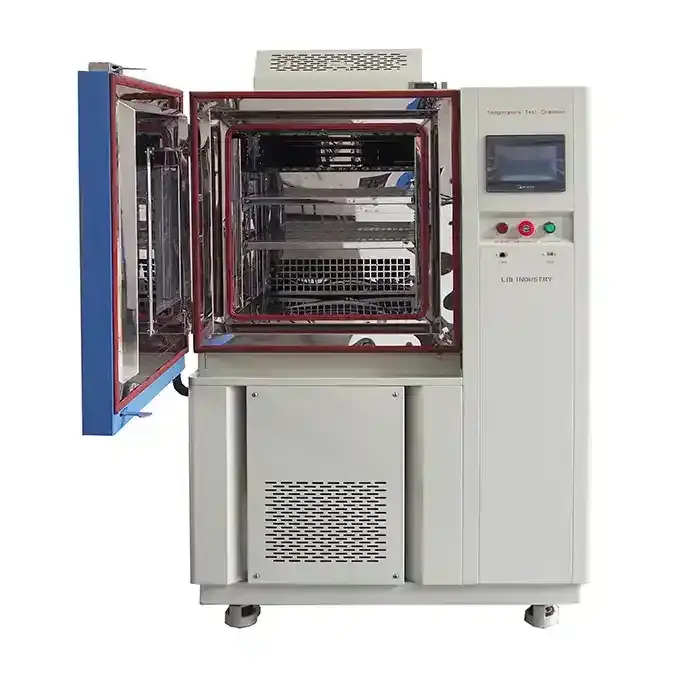

| PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Workroom The internal material is 304 stainless steel Rust-proof to high and low temperature and moisture corrosion; | Cable hole The standard inner hole diameter is 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed |
|
|
Why Choose LIB Laboratory Humidity Chamber ?
Sterile & Pharmaceutical-Grade Design
Mirror-finish SUS304/SUS316L stainless steel interiors and anti-microbial airflow design help maintain clean, contamination-free testing conditions, making the chamber ideal for pharmaceutical and stability testing applications.
ICH & FDA Compliance Support
Designed for ICH Q1A (R2) stability studies, the chamber supports standard testing conditions and offers optional FDA 21 CFR Part 11-compliant software with electronic signatures, audit trails, and secure data management.
Reliable Long-Term Operation
Redundant safety systems, including independent over-temperature protection, water shortage detection, and intelligent control logic, ensure sample safety during extended testing programs.
Smart Remote Monitoring
Optional Wi-Fi, Ethernet, and 4G connectivity enable real-time monitoring and alerts for power failures, water shortages, and environmental deviations, allowing reliable unattended operation.
High Precision & Stability
Advanced PID control maintains temperature accuracy up to ±0.5°C and humidity accuracy up to ±2.5% RH, delivering stable performance for continuous testing exceeding 1,000 hours.
Why LIB Industry?
50+ A long time of Combined Expertise
Since 2009, we've served mechanical endeavors, testing educate, and college research facilities over 60+ nations. Our organizations with Apple, IBM, Amazon, Intel, SGS, TUV, and CERN illustrate the believe world-class organizations put in our equipment.
Global Bolster Network
With benefit centers in Malaysia, Canada, the Joined together Kingdom, and the Joined together States, we give localized back in your time zone. By 2030, we're extending to South America, Central Asia, and Russia—building really worldwide benefit capability.
3-Year Guarantee + Lifetime Service
Every item incorporates a comprehensive 3-year guarantee with 24/7 worldwide bolster. If we cannot repair your hardware amid the guarantee period, we supplant it with a brand-new unit. That's our commitment to your investigate continuity.
ISO 9001 Certified Quality
All items are CE certified and tried by SGS and TUV, guaranteeing compliance with universal measures. We take after thorough quality control all through plan, generation, and testing.
Custom Arrangements Available
Need non-standard measurements? Specialized ports for real-time examining? One of a kind temperature/humidity profiles? Our building group gives custom R&D to meet your particular application necessities.
Contact our application specialists at ellen@lib-industry.com to discuss your specific testing needs. We'll provide technical consultation, laboratory humidity chamber recommendations, and compliance documentation to support your equipment validation process.
