Vibration Test Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-70℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Standard and Custom Chambers
Temperature,climate,vibration,corrosion,altitude, pressure or combined test
Type: Benchtop, Floor Stand & Walk In
- Product Description

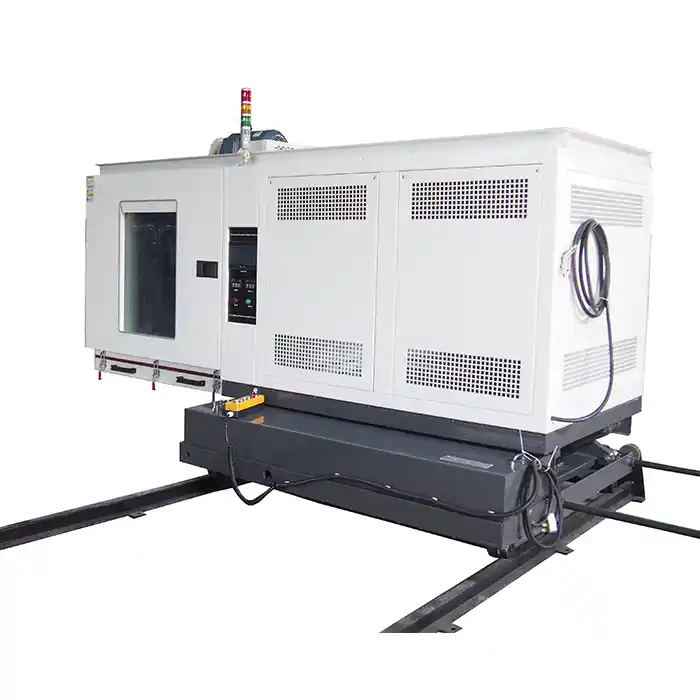

Vibration Test Chamber Manufacturer & Supplier

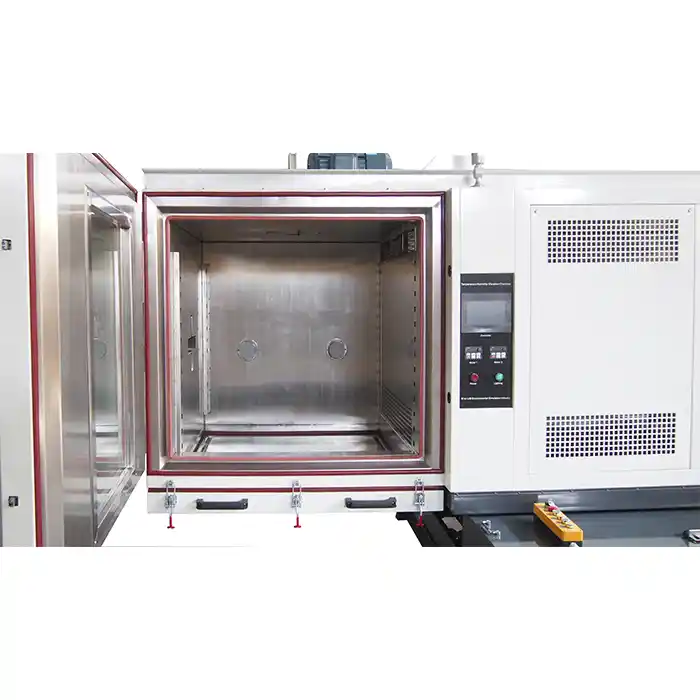

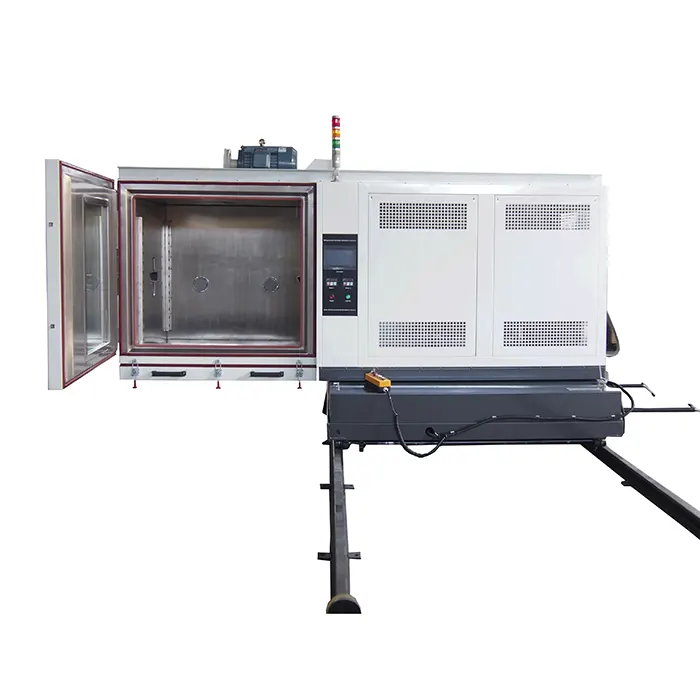

LIB industry is professional vibration test chamber manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now. LIB Vibration Test Chamber is a specialized type of equipment used to simulate various environmental conditions, such as temperature, humidity, and vibration, for testing purposes. It is commonly used in industries such as automotive, aerospace, electronics, and telecommunications. The chamber consists of an insulated enclosure with a controlled climate system, which includes temperature and humidity control units. It also includes a vibration system that generates controlled vibrations at different frequencies and amplitudes.
Technical Specifications
emperature Range | -50℃ ～ +150 ℃ |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Humidity Range | 30% ~ 98% RH |
Humidity Deviation | ± 2.5% RH |
Cooling Rate | 5 ℃ / min |
Heating Rate | 5 ℃ / min |
Rated Force of Vibration | 1000kgf |
Frequency Range of Vibration | 2 to 4000 Hz |
Armature Diameter of shaker | φ240mm |
horizontal sliding table | 600*600 mm |
Power Amplifier | Digital power amplifier |
Head Expander | 600*600 mm |
Blower | 4Kw blower, including muffler. |
Cooling system | Mechanical compression refrigeration system |
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Standard Configuration | Cable hole with plug; 2 shelves |
Product Details
|
|
|

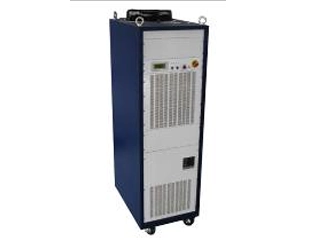

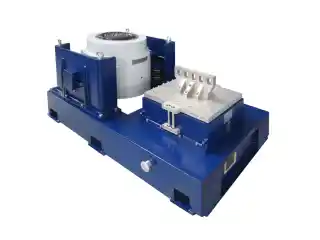

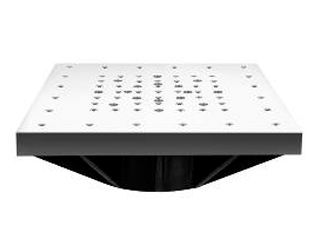

Vibration Shaker Combined both vertical and horizontal axis. Max load is 500 kgs. | Power Amplifier for Vibration Digital power amplifier with sine pulse width modulation technology, liquid crystal displa | Head Expander The extended table provides a larger installation table for vertical testing than the moving coil. |
|
|
Key Features
1. Robust Vibration System
Temperature, humidity and vibration in one chamber. The chamber simulates dynamic environmental conditions, providing a comprehensive understanding of product behavior. The vibration system features a vibration table, power amplifier, cooling fan, digital controller, and sensors. Closed-loop control ensures stable and reliable vibration patterns that accurately simulate transportation and operational conditions.
2. Highly Accurate Results
Our chambers deliver accurate and repeatable test results, crucial for quality assurance. The high-efficiency centrifugal fan circulation system maintains uniform air distribution throughout the chamber. Our PT100 Class A temperature sensors provide measurement precision to ±0.001℃, while high-precision humidity sensors maintain accuracy within ±2.5% RH.
3. Premium Component Selection
We use only top-tier components including Bitzer/Bock compressors, Danfoss electromagnetic valves, and RKC/Siemens controllers. These industry-leading brands ensure reliable operation and consistent performance. Suitable for a wide range of industries, including electronics, aerospace, automotive, and more.
4. Advanced Anti-Condensation Technology
Our patented interface sealing system prevents condensation during testing. The specialized air drying system eliminates moisture buildup that could damage your test samples or affect results.
5. Compliance with International Standards
Our testing chambers meet rigorous international testing standards including: MIL-STD-810G, IEC 60068-2-64, etc. This compliance ensures your test results are recognized globally and meet the most demanding quality requirements.
