Benchtop Test Chambers: When Does a Lab Need Custom Features?
When a lab's samples, protocol, or data rules are different from what a standard model can provide, it needs benchtop test chambers with custom features. If the normal models don't have a certain temperature class or humidity floor, the specimen may be too big, there may need to be extra cable ports or safety measures for the batteries, or the software may need to work with the lab's other systems. Standard models cost less, ship faster, and do a lot of the daily job. When there is no other way to meet a real need, customization is useful. This guide tells you what standard units usually have, when you need a custom build, and how to make an informed choice before getting a quote.
What Standard Features Do Benchtop Test Chambers Usually Provide?
Before you ask for changes, it's good to know what's in the box. The information that LIB has made public is a good place to begin.

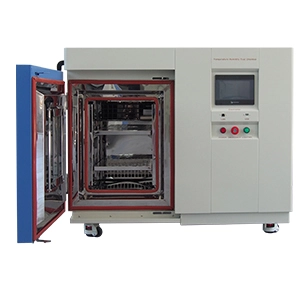

Workroom, Insulation and Window
LIB describes a SUS304 stainless steel workroom with a mirror, a finish that won't rust, a steel surface that has been covered with polyurethane foam and insulation cotton, and a view window that has lights inside and double-layer silicone that closes it. It has two sample racks and a plug for a 50 mm cable. The list also has holes that are 100 mm and 200 mm.
Control, Connectivity and Water Management
A 7-inch color touchscreen is the standard controller. It can be set up for PID and can be used in English, French, Spanish, German, or Russian. Ethernet is on the list, and info is stored on USB. There are no lines needed because the water tank is low and looks like a trunk. LIB has WiFi too, but it's not listed in the specs, so check to be sure.
Standard Models at a Glance
| Parameter | TH-50 | TH-80 |
|---|---|---|
| Internal size (mm) | 320×350×450 | 400×400×500 |
| Overall size (mm) | 820×1160×950 | 900×1210×1000 |
| Volume | 50 L | 80 L |
| Temperature classes | A: -20 °C, B: -40 °C, C: -70 °C, each to +150 °C | Same |
| Humidity range | 20% to 98% RH | Same |
| Fluctuation/deviation | ±0.5 °C / ±2.0 °C | Same |
| Humidity deviation | ±2.5% RH | Same |
Which Testing Requirements May Require Custom Chamber Features?
For tailoring to begin, there must be a void between the protocol and the store. You won't have to redesign later if you find that gap early on.
Signals That Standard May Fall Short
A custom build might be best for more than one reason. The workroom doesn't look right. The range given doesn't have the right temperature or humidity level for the process. There isn't enough wire for the test in one 50 mm port. The lab needs to connect the chamber to its own software. For each signal, a note should be written down before the talk with the supplier.
Applications With Special Demands
LIB benchtop test chambers are used in many fields, including materials science, electronics reliability, pharmaceutical stability and shelf life studies, rapid aging, food and electronics packaging, and pharmaceutical stability and shelf life studies. People who work with pharmaceuticals often follow the ICH stability rules and keep records. When testing batteries, on the other hand, safety issues come up that might not be covered by normal safety measures.
Battery and Sensitive Samples
LIB says that testing lithium-ion batteries can be done safely, but the report doesn't say what those safe ways are. Over-temperature, over-current, high refrigerant pressure, lack of water, and earth leaks are all common ways to stop a humidifier from dry-burning. When a lab tests cells, they should write down what battery-specific tests are offered and how they are done.
When Should Labs Choose Custom Temperature and Humidity Ranges?
Because it's easy to go into too much depth, range is the most talked-about topic when it comes to customization.
Reading the Standard Classes
LIB's classes get as cold as -20 °C, -40 °C, and -70 °C at the cold end. They can get as hot as +150 °C at the hot end, and the humidity runs from 20% RH to 98% RH. The breakdown doesn't just list -60 °C, -86 °C, and a 10% humidity floor; it shows them all. Ask LIB to check which parts are included and which ones need to be ordered separately.
Match the Protocol, Not the Maximum
Might take more room if you want to keep the humidity steady near the bottom of the range. Write down the exact limits your protocol needs, and then add a little extra space. For -40 °C, a -70 °C class is enough. It's not worth the money.
Understand the Performance Limits
LIB says that the temperature drops by 1 °C every minute and rises by 3 °C every minute. These small humidity chambers on a bench are designed to keep the humidity level steady, so they can't handle sudden temperature or shock changes. A different design is what they need instead. Customization might not help if the plan calls for quick jumps. It might work better in a different kind of room.
| Requirement | Standard likely enough? | Ask the supplier |
|---|---|---|
| -20 to +150 °C, 20% to 98% RH | Usually | Confirm uniformity data |
| Below -40 °C | Class C only | Is the target reachable with load? |
| Humidity below 20% RH | Not stated | Is it supported, and how stable? |
| Fast thermal ramps | Unlikely | Is another chamber type better? |
How Chamber Size and Sample Capacity Affect Customization Needs?
If a specimen hits a wall or a rack blocks airflow on test day, it's because of its size.
Specimen Fit and Airflow
The benchtop test chambers TH-50 is 320 mm long, 350 mm wide, and 450 mm high. The TH-80 is 400 mm long, 400 mm wide, and 500 mm high. There should be space on all sides of a specimen so that air can flow. Loads that are too close together make things less even. LIB talks about a method for moving air that is supposed to get rid of temperature differences, but no design can handle being overcrowded.

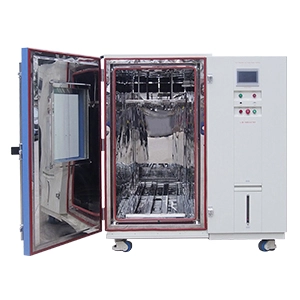

Sample Count and Racking
It has two racks built in. Labs that work with a lot of small samples may need more racks, different space, or trays that can be taken off. These changes are small and don't cost a lot of money most of the time. It's possible that the racks will need to be strengthened if the samples are heavy. If the supplier didn't write down the rack load limits, ask them.
When to Move Beyond Benchtop?
If the sample or batch size is more than 80 L, a custom PC build can only do so much. In other product lines that LIB lists, there are floor-standing and walk-in models. Before you decide, look at the total size of 900x1210x1000 mm and compare it to the size, strength, and airflow of the bench.
Which Control and Data Features Are Worth Customizing?
Most of the time, software and data functions don't change the price, but they do change how people work every day.
Programming and Profiles
The customizable device can set custom settings for temperature and humidity and set up automatic processes. A color touch screen shows test results and graphs. A standard way can be used to program most processes with more than one step. It is possible to customize a protocol so that it works with odd segment counts, linked cycles, or alarm logic.
Data Logging and Remote Access
Whether you join via USB or Ethernet, you can log data and keep an eye on things from away. The wire hole page for LIB also talks about other product lines that work with local lab software, but this isn't mentioned in the workbench data that was given. Find out if the chamber can connect to your lab's main data system and if this is a standard or custom service.
Traceability and Records
When work is controlled, it needs to have records of users, calibrations, and audit trails. These features aren't mentioned in the information given, so make sure you ask for them specifically. It is often more useful to get information from the sample itself than from the air in the box. You can add these devices when the building is being planned.
How to Decide Between a Standard and Custom Benchtop Test Chamber?
Making a smart choice helps keep the project on track and the cost down.
Weigh Cost, Lead Time, and Risk
Most of the time, standard benchtop test chambers work well, cost less, and ship faster. Building something from scratch takes longer because you have to spend more time drawing, testing, and sometimes getting new parts. In order to meet specific testing needs, the LIB R&D team says they can change standard designs. This means that a small change is usually possible.
| Factor | Standard | Custom |
|---|---|---|
| Purchase cost | Lower | Higher |
| Lead time | Shorter | Longer |
| Fit to unusual protocol | Limited | Close |
| Performance record | Established | Verified per build |
Questions to Ask Before Choosing Custom
Does a standard model reach all of the setpoints that need to be reached with your load? Might a small add-on, like an extra rack or a bigger wire port, help? Does the need last a long time or a short time? When it comes to service and calibration, will the custom feature make things harder to do? Most of the time, giving an honest answer will cut down the unique list.
Document Everything
Write down the agreed-upon standard, the acceptance test, how well the sample works, and the date that you and the service decided on. LIB says that their products are certified by ISO 9001, CE, SGS, and TUV, come with a 3-year guarantee, lifetime service, and help around the world 24 hours a day, 7 days a week. Read the contract to find out more about how we cover custom parts.
Hot Selling Thermal Humidity Climatic Testing Equipment
|
|
|
|
| Benchtop Environmental Chamber | Battery Test Chamber | PV Environmental Chamber |
|
|
|
|
| Industrial Oven | Thermal Shock Chamber | Thermal Cycling Chamber |
Working With a Supplier on a Custom Specification
As important as the list of features is, the process is. Things are less likely to surprise you when you have a clear pattern.
Prepare the Brief
It's important to include the sample size and weight, the number of samples per run, the ramp and stay time, the procedure, the safety needs, the data needs, and the country where the samples are going. The quote is more accurate and takes less time to clear up with a full brief.
Review Drawings and Specifications
Before the racks are put together, you should be shown a picture of the planned workroom that shows where the ports will go and how the racks will be set up. The bench, door, and power supply should all be the right size for the whole. In addition to study and design, LIB also makes things, delivers them, sets them up, trains people, and commissions them. Make sure you know what steps are in the process.
Verify at Acceptance
There are things you need to keep track of after running an acceptance loop with either your own sample or a reference load. Check that the temperature, humidity, and warning behavior are all the same as the numbers that were agreed upon. To keep the chamber accurate, workers need to know how to set it up, deal with water, and do regular maintenance.
Conclusion
Standard features in benchtop test chambers allow for the majority of regular R&D work. There is no need for customization unless a protocol, specimen, or data rule says so. Note down the required levels of temperature and humidity, the size of the sample, the functions of the controls, and the safety rules. Then, see if all of them can be fit into one model. If you don't understand a number, ask for written proof of it, and check your work once it's been accepted. If you base your specification on what people really need, you can avoid features that won't be used and costly redesigns.
Are you ready to spell out what you need? LIB Industry makes, sells, and has a workshop that provides complete solutions for environmental testing. They will look at your samples and process and give you choices that are either standard or special. Write to ellen@lib-industry.com today.
FAQ
When is a standard benchtop chamber enough?
As soon as the temperature and humidity are just right, put your samples inside, and it's ready to go. The standard units will ship faster and cost less, so you should try them first.
Which customizations are usually small changes?
Small changes include adding more racks, making the cable ports bigger, and moving the shelves around. For longer ranges, safety features for the battery, and software that works with the phone, more technical work is needed, so ask for written proof.
Can benchtop chambers run fast thermal cycling?
Small changes include adding more racks, making the cable ports bigger, and moving the shelves around. For longer ranges, safety features for the battery, and software that works with the phone, more technical work is needed, so ask for written proof.
What after-sales support does LIB industry provide?
LIB industry provides a 3-year warranty, lifetime technical support, and 24/7 English-language technical assistance. Installation guidance, operator training, and spare-parts support are also available according to project requirements.
What is the delivery time for LIB industry chambers?
LIB industry supports global delivery of environmental test chambers and critical components within 7–15 days, helping customers receive their equipment and essential parts promptly.
What certifications and compliance documents are available?
LIB industry operates under an ISO 9001 quality management system. CE and RoHS documentation is available for applicable models. Confirm the certificates and compliance documents available for the specific chamber before ordering.
