How IPX9K Testing Ensures Heavy Equipment Waterproofing?

Heavy machinery operating in construction sites, mining operations, and agricultural fields confronts relentless water exposure - from high-pressure washdowns removing caked mud to steam cleaning procedures eliminating contaminants. IPX9K testing represents the most rigorous waterproof validation protocol available, subjecting equipment enclosures to 8,000-10,000 kPa pressurized jets at 88°C temperatures. This extreme testing methodology replicates the harsh cleaning regimens industrial equipment endures throughout operational lifespans. IEC 60529 IPX9K equipment delivers these punishing test conditions through precision-controlled spray nozzles targeting vulnerable enclosure interfaces while rotating specimens ensure complete coverage. Manufacturers validating heavy equipment against IPX9K standards guarantee that electrical housings, hydraulic connectors, and control panels withstand the most aggressive water exposure scenarios without compromising internal component integrity or creating safety hazards from moisture ingress.

Environmental Challenges Faced by Heavy Machinery in Operation

High-Pressure Cleaning Protocol Exposure

Construction equipment returns from jobsites coated in concrete residue, clay deposits, and aggregate materials that standard washing cannot remove. Maintenance facilities employ industrial pressure washers delivering 5,000-15,000 kPa water jets combined with detergents and elevated temperatures reaching 90°C. Electrical junction boxes, sensor housings, and connector assemblies positioned throughout the equipment directly receive these high-pressure streams during routine cleaning operations.

Steam Cleaning in Food Processing Equipment

Agricultural machinery processing harvested crops and food industry equipment require sanitation protocols preventing bacterial contamination. Steam cleaning systems delivering superheated water vapor at temperatures exceeding 100°C penetrate every crevice, dissolving organic residues and sterilizing surfaces. The combination of thermal shock and moisture saturation challenges enclosure sealing systems simultaneously.

Mining Environment Washdown Requirements

Underground mining equipment operates in environments where combustible coal dust accumulation creates explosion hazards. Regulatory compliance mandates frequent washdown procedures removing dust deposits from all equipment surfaces. High-volume water sprays combined with brushing action subject electrical enclosures to sustained moisture exposure from multiple angles.

Simulating Extreme Water Jet Conditions in IPX9K Testing

Precision Pressure Control Systems

The distinction between IPX6 testing (100 kPa powerful jets) and IPX9K validation (8,000-10,000 kPa extreme pressure) represents an 80-fold intensity increase. IEC 60529 IPX9K equipment incorporates industrial-grade pumps delivering consistent pressure output despite flow resistance variations. Real-time pressure monitoring through digital gauges displays live pressure curves on controller interfaces, enabling operators to verify compliance throughout 30-second spray cycles.

Thermal Management for Heated Water Testing

Elevating water temperature to 88°C while simultaneously pressurizing it to 10,000 kPa requires robust heating systems and insulated storage tanks. Nichrome heating elements rapidly achieve target temperatures, while dedicated insulation minimizes heat loss during circulation. Temperature sensors positioned at spray nozzle outlets verify that water reaches specimens at specification temperatures.

Multi-Angle Spray Configuration

IPX9K protocols specify four spray angles - 0°, 30°, 60°, and 90° relative to the specimen surface - each maintained for 30 seconds while the turntable rotates the equipment at 5±1 rpm. This combination creates comprehensive coverage patterns exposing every enclosure surface to direct high-pressure impact. Programmable controllers automate these sequences, eliminating human timing errors that could compromise certification testing.

Assessing Structural Sealing and Component Protection

Enclosure Gasket Performance Validation

Heavy equipment electrical enclosures rely on compressible gaskets creating barriers against moisture intrusion at mating surfaces. IPX9K testing reveals whether gasket material selection, compression force, and groove geometry adequately resist high-pressure water penetration. Silicone, EPDM, and polyurethane gaskets respond differently to thermal cycling and compression set after repeated pressure exposure.

Cable Entry Gland Effectiveness

Wiring harnesses entering electrical enclosures create inherent vulnerability points where cables penetrate protective housings. Cable glands must seal around individual conductor bundles while accommodating cable movement from vibration and thermal expansion. IPX9K testing directs pressurized water jets specifically at cable entry locations, probing seal integrity under hydraulic pressure conditions.

Threaded Connector Interface Sealing

Hydraulic quick-disconnect couplers, pneumatic fittings, and electrical circular connectors employed throughout heavy machinery feature threaded coupling mechanisms. Thread engagement depth, O-ring placement, and coupling torque specifications all influence sealing effectiveness. High-pressure water testing reveals whether recommended installation torques provide adequate sealing or if increased tightening proves necessary.

Component Type IPX9K Test Focus Failure Indication

IPX9K Certification Requirements for Industrial Equipment

ISO 20653 Road Vehicle Standards Application

While IEC 60529 establishes the fundamental IPX9K testing methodology, ISO 20653 adapts these protocols specifically for road vehicles and mobile equipment. This standard recognizes that agricultural tractors, construction loaders, and forestry equipment encounter cleaning scenarios distinct from stationary industrial installations. ISO 20653 specifies test specimen orientation accounting for typical equipment positioning during washdown.

EN 60529 European Compliance Pathways

European markets mandate EN 60529 compliance for IEC 60529 IPX9K equipment sold within EU member states. This harmonized standard aligns with IEC 60529 requirements while incorporating specific documentation and certification body oversight expectations. Manufacturers pursuing CE marking for heavy equipment must validate IPX9K performance through accredited testing laboratories maintaining EN 60529 certification authority.

Documentation and Traceability Demands

Achieving IPX9K certification requires meticulous documentation proving test validity and result accuracy. Equipment calibration certificates for pressure gauges, flow meters, temperature sensors, and turntable speed controllers must demonstrate traceability to national standards laboratories. Automated data logging through touchscreen controllers timestamps pressure values, spray angles, rotation speeds, and water temperatures throughout test execution.

Common Leakage Points in Heavy-Duty Machine Design

Display Panel and Indicator Integration

Operator interfaces featuring LCD displays, LED indicators, and membrane keypads require environmental protection without compromising visibility or tactile feedback. Adhesive bonding between transparent windows and housing bezels creates potential moisture ingress paths if adhesive coverage proves incomplete. IPX9K testing reveals whether display assemblies withstand direct high-pressure spray without water penetration behind viewing windows.

Sensor Housing Vulnerabilities

Heavy equipment incorporates numerous sensors monitoring hydraulic pressures, engine temperatures, load weights, and positioning data. These sensors often feature cylindrical housings threaded into manifold blocks or mounted on brackets exposed to cleaning spray. Thread sealant application, O-ring groove dimensions, and sensor orientation all influence moisture resistance.

Access Panel and Inspection Port Sealing

Maintenance accessibility demands removable panels providing technician access to internal components. Quick-release latches, cam locks, and captured fastener systems simplify panel removal but complicate sealing compared to permanently fastened covers. IPX9K validation stresses these access points, revealing whether latch compression force maintains adequate gasket sealing.

Improving Field Reliability Through Accelerated Waterproof Testing

Identifying Design Weaknesses Before Production

Prototype validation through IPX9K testing during development phases identifies sealing deficiencies when design modifications remain feasible and cost-effective. Engineers test initial enclosure concepts, discover water ingress paths, modify designs, and retest within development cycles. This iterative validation prevents catastrophic scenarios where field failures trigger expensive redesigns after production tooling investment.

Material Selection and Compatibility Verification

Enclosure materials and sealing compounds respond differently to combined thermal and hydraulic stress. Polycarbonate housings may crack under thermal shock when hot water hits sun-heated surfaces. Certain gasket materials swell excessively when exposed to heated water, compromising seal integrity after cooling. Systematic material testing under IPX9K conditions generates performance databases guiding material selection.

Simulating Lifetime Cleaning Exposure

Single IPX9K tests validate initial sealing effectiveness, but heavy equipment endures hundreds of cleaning cycles throughout operational lifespans. Accelerated testing protocols subject enclosures to repeated IPX9K exposure sequences simulating years of cleaning procedures within weeks. Multi-cycle testing reveals long-term reliability trends, identifying components requiring periodic replacement.

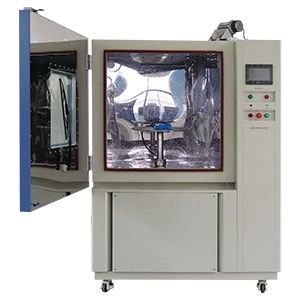

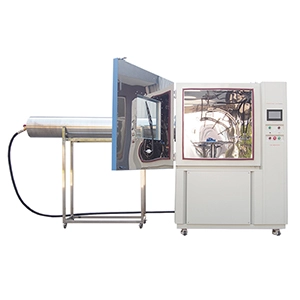

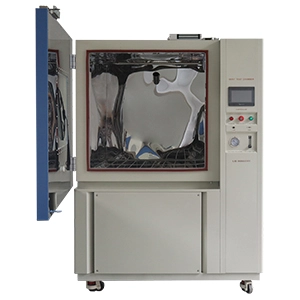

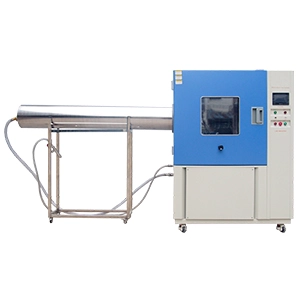

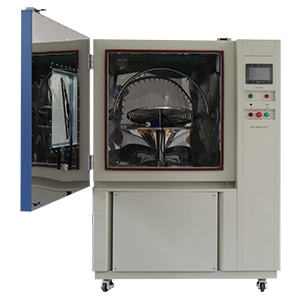

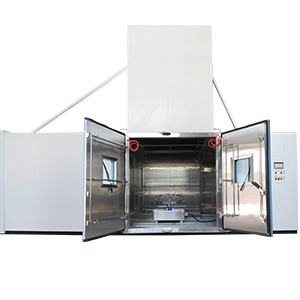

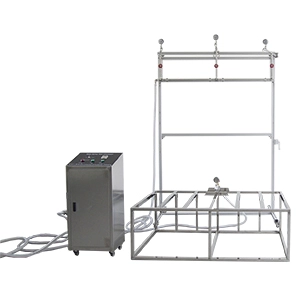

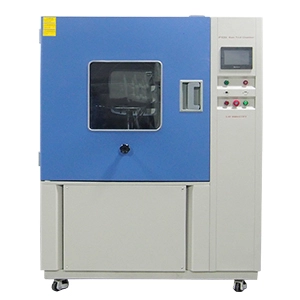

Beyond IPX9K: Complete IP Waterproof Testing Solutions from LIB Industry

LIB Industry Delivers Robust IPX9K Heavy-Duty Protection Testing

Industrial-Grade Pressure Delivery Systems

LIB Industry's IEC 60529 IPX9K equipment achieves and maintains the extreme 8,000-10,000 kPa pressure specifications through industrial-grade high-pressure pumps and full stainless steel plumbing construction. The R9K-1200 model incorporates precision pressure regulation with real-time monitoring, displaying live pressure curves that prove compliance during certification testing.

Heavy-Duty Turntable Supporting Large Components

Heavy machinery components often weigh substantially more than consumer electronics typically tested in standard chambers. LIB equipment features robust turntables handling standard loads up to 50kg with optional upgrades accommodating 200kg specimens. The 600mm diameter turntable platform provides stable mounting for excavator control panels, agricultural equipment junction boxes, and mining machinery enclosures.

Enhanced Safety Systems for Extreme Conditions

Operating conditions inside IPX9K test chambers create substantial safety considerations. LIB equipment incorporates multi-layer reinforced observation windows withstanding direct high-pressure impact without fracture risk. Heavy-duty electromagnetic door locks prevent chamber opening during active spray sequences, protecting operators from scalding water exposure. Multiple safety interlocks including water shortage protection and earth leakage protection create comprehensive safeguards.

Intelligent Control and Documentation Capabilities

The programmable color LCD touchscreen controller simplifies complex test sequence creation while maintaining rigorous documentation standards. Ethernet connectivity enables integration with laboratory information management systems, automatically uploading test data including timestamped pressure values and temperature recordings. USB ports facilitate data export for certification report preparation.

Customization for Specialized Applications

While standard R9K-1200 configurations address most heavy equipment testing requirements, specialized applications sometimes demand unique capabilities. LIB Industry's engineering expertise encompasses custom chamber sizing for oversized components, modified spray patterns targeting specific vulnerability areas, and integration of specimen power supplies for testing energized electrical assemblies.

Conclusion

Heavy equipment operating in demanding industrial environments requires waterproof protection validated against the most rigorous testing protocols available. IPX9K testing subjects enclosures to extreme high-pressure, high-temperature water jets replicating aggressive cleaning procedures. Specialized IEC 60529 IPX9K equipment delivers precise pressure control, accurate thermal management, and comprehensive spray coverage that identifies sealing vulnerabilities before field deployment. Manufacturers implementing IPX9K validation achieve measurably superior field reliability, reduced warranty costs, and competitive differentiation through verified environmental protection claims.

FAQ

What differentiates IPX9K testing from standard IPX6 waterproof validation?

IPX9K delivers 8,000-10,000 kPa pressurized water jets at 88°C, representing approximately 80-100 times the pressure intensity of IPX6 testing (100 kPa). This extreme protocol replicates high-pressure steam cleaning and industrial washdown procedures that standard waterproof testing cannot simulate.

How long does complete IPX9K testing take for heavy equipment components?

Standard IPX9K protocols specify four spray angles (0°, 30°, 60°, 90°) with 30-second exposure at each position while the specimen rotates. Complete testing including setup, temperature stabilization, spray sequences, and post-test inspection typically requires 45-90 minutes per component.

Can IPX9K equipment test energized electrical assemblies safely?

Professional IEC 60529 IPX9K equipment incorporates specialized safety features including waterproof power outlets with protective covers, sealed cable penetrations for external connections, and earth leakage circuit breakers. These provisions enable safe testing of powered control panels under high-pressure spray conditions.
