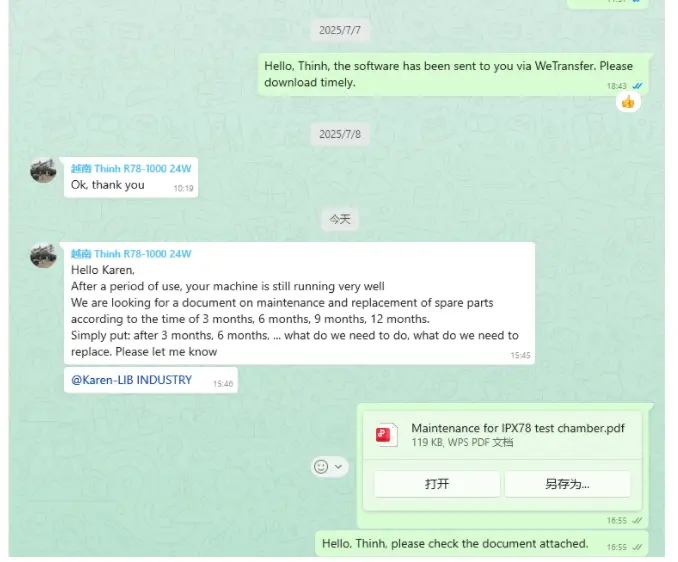

A customer in Vietnam using the LIB industry R78-1000 water immersion test system recently shared their experience with extended operational use. They reported that the equipment consistently delivered stable and accurate immersion testing, reliably verifying sealing performance throughout their production validation. After several months, the client reached out for guidance on preventive maintenance and spare parts planning, demonstrating both their trust in the system and confidence in its long-term reliability. This feedback underscores LIB industry’s dedication to providing durable IPX7 and IPX8 immersion testing solutions that combine dependable performance, easy maintenance support, and effective waterproof validation for manufacturers worldwide.



Why Automotive Components Require Water Resistance Testing?

---

Protection Against Environmental Hazards

Automotive components face relentless exposure to moisture throughout their service life. Rain penetration through body seams, underbody splash from wet roads, and steam from engine compartments create aggressive environments where unprotected electronics quickly fail. Water immersion testing reveals vulnerabilities in gasket designs, seal placements, and housing geometries that might allow moisture ingress under pressure or prolonged submersion.

Compliance with International Standards

Global automotive suppliers must demonstrate adherence to IP (Ingress Protection) ratings specified by vehicle manufacturers. IPX7 certification requires components to survive immersion in one meter of water for 30 minutes, while IPX8 demands resistance to continuous submersion under manufacturer-specified conditions, often simulating flooding scenarios. Testing in a water immersion tank provides documented evidence of compliance for regulatory approvals and customer specifications.

Preventing Warranty Claims and Field Failures

Electronic failures due to water damage represent a significant portion of automotive warranty expenses. A single compromised connector in a critical system can trigger cascade failures affecting safety features, engine management, or infotainment systems. Comprehensive immersion testing during development phases identifies design weaknesses before mass production, dramatically reducing field failure rates and associated warranty costs.



Common Components Tested: Sensors, Connectors, and Modules

---

Sensor Arrays and Transducers

Advanced driver assistance systems (ADAS) depend on radar sensors, ultrasonic parking sensors, and camera modules mounted in vulnerable exterior locations. These devices require hermetic sealing to maintain calibration and functionality. Water immersion tanks evaluate sensor housings under pressure conditions that exceed normal service requirements, ensuring backup camera modules, blind-spot detection radar, and rain sensors maintain signal integrity even after temporary submersion.

Electrical Connectors and Wiring Harnesses

Automotive electrical architectures contain hundreds of connectors linking power distribution, data networks, and control signals. Multi-pin connectors under the hood, beneath seats, and in door panels must resist water penetration while maintaining low contact resistance. Immersion testing validates connector seal designs, terminal plating quality, and housing material selections that prevent corrosion and electrical shorts.

Electronic Control Modules

Engine control units (ECUs), transmission control modules (TCMs), and body control computers represent high-value components requiring absolute protection from moisture. These sealed aluminum or plastic enclosures undergo pressure testing in water immersion tanks to verify O-ring compression, housing weld integrity, and connector interface sealing. Testing at pressures equivalent to 50-meter depths simulates extreme conditions far exceeding normal vehicle operation.



Test Parameters for Automotive Water Immersion Testing

---

Immersion Depth and Duration Settings

Test Standard	Immersion Depth	Duration	Application
IPX7	1 meter	30 minutes	General exterior components
IPX8 (Level 1)	1.5 meters	60 minutes	Underbody-mounted modules
IPX8 (Level 2)	3 meters	4 hours	Fording capability validation

Automotive specifications often exceed standard IP ratings to account for safety margins and worst-case scenarios. Components installed in wheel wells or rocker panels may require certification to withstand high-pressure water jets combined with submersion, necessitating sequential testing protocols.

Pressure Simulation Capabilities

The R78-600 water immersion tank generates pressures equivalent to 50-meter water depths, far exceeding typical automotive requirements. This capacity allows testing of specialized components for amphibious vehicles, submersible equipment compartments, and military applications. Programmable pressure profiles simulate gradual submersion, sudden immersion shock, and sustained pressure exposure to reveal time-dependent seal failures.

Temperature and Water Chemistry Variables

Real-world water exposure involves varied temperatures and contamination levels. Testing protocols incorporate heated water for tropical climate simulation, near-freezing temperatures for cold-weather performance validation, and saltwater solutions for corrosion assessment. The automated water supply system in industrial immersion tanks maintains consistent water quality and temperature throughout extended test cycles.



Simulating Real-World Conditions in Water Tanks

---

Dynamic Pressure Cycling

Static immersion represents only one aspect of moisture exposure. Vehicles experience dynamic water pressure changes during acceleration through puddles, pressure washing, and driving through flooded areas. Advanced testing sequences program the pneumatic lid system to create controlled pressure fluctuations, simulating the hydraulic shock of water impact and the pressure variations encountered during fording operations.

Combined Environmental Stressing

Environmental Factor	Test Combination	Validation Purpose
Temperature + Immersion	-40°C to +85°C cycling with submersion	Seal material expansion/contraction
Vibration + Pressure	Shake table testing during immersion	Connector retention under movement
Aging + Water Exposure	UV pre-conditioning followed by immersion	Long-term seal degradation

Automotive components endure multiple stressors simultaneously. Sequential testing protocols expose samples to thermal cycling, mechanical vibration, and chemical exposure before immersion testing, revealing degradation mechanisms that single-factor testing might miss.

Post-Test Functional Verification

Water resistance means maintaining operational performance, not merely excluding visible moisture. Testing protocols include electrical continuity measurements during immersion using specialized feedthroughs in the tank wall. The Ethernet connection and USB data download capabilities of modern water immersion tanks enable real-time monitoring of sensor outputs, resistance measurements, and functional status throughout submersion cycles.



Interpreting Test Data for Vehicle Component Reliability

---

Leak Detection Methodologies

Visual inspection after immersion provides initial pass/fail assessment, but sophisticated analysis requires quantitative measurements. Helium leak testing following water immersion detects microscopic seal defects that slowly accumulate moisture. Desiccant humidity indicators placed inside sealed housings reveal moisture penetration levels. The programmable touch screen controller records pressure decay rates that indicate seal integrity degradation.

Statistical Analysis of Failure Modes

Failure Mode	Typical Occurrence	Root Cause	Design Correction
Connector seal extrusion	15-25 minutes immersion	Improper compression	Seal geometry revision
Housing crack propagation	Pressure cycling >30 bar	Material brittleness	Polymer grade change
Adhesive delamination	Temperature extremes	Coefficient mismatch	Adhesive formulation

Analyzing failure patterns across sample populations identifies systematic design weaknesses versus random manufacturing defects. Accelerated testing protocols using elevated pressures and extended durations predict field performance over 10-15 year vehicle lifespans.

Correlation with Field Performance Data

Water immersion test results gain validation through comparison with warranty claim data and field failure reports. Components passing rigorous tank testing but experiencing field failures indicate gaps in test protocols, suggesting additional environmental factors require simulation. Conversely, components with marginal test performance but excellent field reliability may indicate overly conservative testing, allowing design optimization for cost reduction.



Reducing Field Failures Through Controlled Water Immersion Tests

---

Early Design Validation

Incorporating immersion testing during prototyping stages reveals design flaws before tooling investment. Rapid iteration using the 600mm diameter, 1500mm height cylindrical chamber accommodates various component sizes for parallel testing. The A3 steel plate construction with 15mm wall thickness ensures repeatable test conditions across development cycles, providing consistent data for design comparison.

Supplier Quality Assurance Programs

Automotive OEMs require component suppliers to demonstrate water resistance compliance through third-party testing or witnessed validation. The storage water tank and automatic water supply system enable unattended testing of large sample quantities for incoming inspection programs. Documented test data from the programmable controller provides traceability for quality management systems and regulatory audits.

Production Process Optimization

Manufacturing variations in seal installation torque, adhesive cure conditions, and housing weld parameters affect water resistance. Periodic production sampling using immersion tanks identifies process drift before defective components reach vehicle assembly. Statistical process control charts tracking immersion test pass rates guide preventive maintenance schedules and operator training requirements.



Robust Automotive Component Testing with LIB Industry Water Immersion Tanks

---

Model	R78-600
Internal Dimension (mm)	Diameter 600mm * Height 1500 mm
Overall Dimension (mm)	Diameter 800mm * Height 1800 mm
Pressure	50m water depth pressure
Open mode	Pneumatic lid
Material	A3 steel plate, wall thickness 15mm
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water Supply System	Storage water tank, Automatic water supply
Test Area	Footstand
Control Panel	Safety Lock

Advanced Control Systems

LIB Industry's water immersion tank features a programmable color LCD touch screen controller with Ethernet connectivity, enabling remote test monitoring and data integration with laboratory information management systems. The pneumatic lid operation ensures operator safety during high-pressure testing, while the 304 stainless steel hydraulic rod with mirror-finish surfaces resists corrosion from extended water exposure and chemical additives.

Customization Capabilities

Automotive testing requirements vary across manufacturers, component types, and regional specifications. LIB Industry provides tailored solutions including custom sample fixtures, multi-station testing configurations for parallel evaluation, and specialized pressure profiling for unique validation protocols. The tripod-supported cylindrical design accommodates facility floor loading constraints while maintaining structural integrity during 50-meter equivalent pressure testing.

Comprehensive Support Infrastructure

Beyond equipment supply, LIB Industry delivers turn-key solutions encompassing installation, operator training, and calibration services. Technical support includes test method development assistance, failure analysis consultation, and periodic verification testing to maintain measurement accuracy. This comprehensive approach ensures automotive laboratories achieve reliable, repeatable results that withstand customer audits and regulatory scrutiny.



Conclusion

---

Water immersion tanks represent indispensable tools for automotive component validation, providing controlled environments that simulate years of moisture exposure in accelerated test cycles. By identifying seal deficiencies, connector vulnerabilities, and housing weaknesses before production, manufacturers protect brand reputation, reduce warranty expenses, and enhance vehicle reliability. As automotive electrification intensifies and autonomous systems proliferate, water resistance testing becomes increasingly critical for ensuring electronic component longevity in demanding environmental conditions.



FAQ

---

What is the difference between IPX7 and IPX8 testing for automotive components?

IPX7 requires components to withstand immersion in one meter of water for 30 minutes without water ingress. IPX8 involves continuous submersion under manufacturer-specified conditions, typically deeper depths and longer durations, simulating extreme flooding scenarios beyond standard IPX7 requirements.

How does pressure testing in water immersion tanks prevent automotive component failures?

Pressure testing simulates hydraulic forces experienced during vehicle fording, pressure washing, and deep-water exposure. By applying pressures equivalent to 50-meter depths, testing reveals seal compression failures, housing deformation, and connector leakage that might not appear during atmospheric-pressure immersion alone.

Can water immersion tanks test multiple automotive components simultaneously?

Modern immersion tanks with 600mm diameter chambers accommodate multiple samples using custom fixture racks. Parallel testing increases throughput while maintaining consistent environmental conditions across all specimens, enabling efficient supplier qualification and production sampling programs for high-volume automotive manufacturing.



Partner with LIB Industry for Your Automotive Testing Needs

---

As a leading water immersion tank manufacturer and supplier, we deliver precision-engineered testing solutions backed by comprehensive technical support. Contact our team at ellen@lib-industry.com to discuss customized immersion testing equipment for your automotive component validation requirements.

Rain test chambers play a pivotal role in validating the weatherproofing capabilities of outdoor electronics before market deployment. These specialized environmental testing systems simulate various precipitation conditions - from gentle drizzle to wind-driven storms - enabling manufacturers to identify vulnerabilities in seals, housings, and component protection. By subjecting devices to controlled rainfall scenarios that mirror real-world exposure, engineers can assess water ingress resistance, verify IP ratings, and ensure long-term reliability. The MIL STD 810 G rain test chamber offers standardized testing protocols that replicate extreme environmental conditions, providing quantifiable data on product durability and helping manufacturers meet regulatory requirements while reducing costly field failures.

Customers have shared positive experiences with LIB industry rain test chambers, noting how smoothly their testing runs even under busy schedules with multiple environmental simulations. Engineers appreciate the intuitive touch-screen interface, which makes accessing test data straightforward, while LIB industry’s support team is praised for being responsive and helpful whenever guidance is needed. This seamless combination of reliable performance and attentive service gives manufacturers confidence that their devices are being accurately tested and that any questions along the way will be promptly addressed.



How Rain Exposure Impacts Outdoor Electronic Devices?

---

Corrosion Mechanisms in Electronic Components

Water penetration initiates electrochemical reactions on circuit boards and metal contacts, creating oxidation pathways that degrade conductivity. Even minute moisture accumulation can establish galvanic cells between dissimilar metals, accelerating material breakdown. Solder joints become particularly vulnerable as water acts as an electrolyte, facilitating ion migration that weakens structural integrity and electrical connections.

Signal Degradation from Water Infiltration

Moisture intrusion into connectors and cable assemblies increases impedance and introduces signal attenuation. Water droplets on antenna surfaces alter radiation patterns and reduce transmission efficiency. High-frequency circuits experience significant performance losses as dielectric properties change with water absorption, compromising data integrity and communication reliability.

Thermal Cycling Effects During Wet Conditions

Temperature fluctuations combined with moisture create expansion-contraction stress cycles that compromise protective seals. Condensation forms inside enclosures when ambient temperatures drop, creating internal humidity that persists long after external rainfall ceases. This trapped moisture accelerates aging processes and can cause catastrophic failures in power management circuits.



Common Outdoor Electronics Vulnerabilities to Moisture

---

Seal and Gasket Deterioration

Rubber gaskets and O-rings undergo aging when exposed to UV radiation and temperature extremes, losing elasticity and creating microscopic gaps. Compression set - the permanent deformation after prolonged sealing force - reduces the effectiveness of weatherproofing barriers. Testing reveals that gasket materials require periodic evaluation, as manufacturers often discover seal failures occurring well before anticipated product lifespans.

Connector Port Weaknesses

USB ports, ethernet jacks, and power connectors represent critical ingress points for moisture. Thread engagement depth, cap retention force, and mating interface geometry all influence water resistance. Capillary action can draw water along cable exteriors into connector bodies, bypassing surface-level protective measures and reaching sensitive electronics through backdoor pathways.

Display and Lens Fogging Issues

Optical components face unique challenges as water vapor condenses on interior glass surfaces, obscuring visibility. Anti-fog coatings degrade over time, and pressure equalization vents - necessary for preventing pressure differential damage - can inadvertently allow moisture entry, a vulnerability often evaluated in a blowing rain test chamber under wind-driven precipitation conditions. Temperature differentials between display backlighting and ambient air exacerbate condensation formation, particularly during rapid weather transitions.



Designing Rain Test Profiles for Outdoor Applications

---

Matching Environmental Exposure Patterns

Geographic deployment locations dictate specific testing requirements. Tropical regions demand high-intensity rainfall simulation with temperatures approaching 55°C, while temperate zones require testing across broader temperature ranges with lower rainfall rates. Historical weather data informs test duration and intensity, ensuring validation matches decades-long exposure expectations compressed into accelerated testing timeframes.

Wind-Driven Rain Simulation Requirements

The MIL STD 810 G rain test chamber incorporates blower systems generating wind speeds up to 18 m/s, replicating horizontal rain impact on vertical surfaces. This capability proves essential for evaluating building-mounted equipment, outdoor cameras, and communication infrastructure. Droplet velocity reaching 9 m/s on test specimens simulates storm conditions that reveal vulnerabilities invisible during static water exposure.

Exaggerated Testing for Margin Validation

Procedure II testing employs nozzle pressures of 276 kPa and rainfall rates of 20.8 L/min, exceeding natural precipitation extremes. This exaggerated approach identifies design margins and exposes marginal sealing that might survive typical conditions but fail during extreme weather events. One nozzle per 0.56 m² of surface area positioned 48 cm from test specimens ensures comprehensive coverage without creating unrealistic local flooding.

Test Procedure	Rainfall Rate	Wind Speed	Primary Application
Procedure I (Rain and Blowing Rain)	≥1.7 mm/min	Up to 18 m/s	General outdoor equipment
Procedure II (Exaggerated Rain)	20.8 L/min	Variable	High-reliability critical systems
Procedure III (Drip)	≥280 L/m²/h	None	Overhead-mounted devices



Monitoring Performance of Sensors, Displays, and Housings



---

Real-Time Electrical Continuity Verification

During testing, continuous monitoring circuits detect resistance changes indicating water penetration before visible damage occurs. Strategically placed moisture sensors inside enclosures provide early warning of seal breaches. Current leakage measurements on powered circuits reveal insulation degradation, enabling immediate test termination to preserve failure evidence for root cause analysis.

Optical Performance Degradation Assessment

Illuminance meters quantify light transmission losses through fogged lenses and display covers. Camera systems undergo image quality analysis, measuring contrast reduction and resolution degradation during and after water exposure. Infrared thermography identifies temperature anomalies suggesting moisture accumulation in specific enclosure regions, guiding design refinement efforts.

Mechanical Integrity Evaluation

Dimensional measurements before and after testing reveal housing deformation from water pressure or thermal stress. Force-displacement curves for buttons and switches detect performance changes from moisture absorption in mechanical components. Rotation turntables operating at 1-7 rpm ensure all surfaces experience equivalent exposure, preventing localized testing artifacts that misrepresent product capabilities.



Mitigating Water-Induced Failures in Electronics

---

Conformal Coating Application Strategies

Acrylic, silicone, and urethane coatings provide direct circuit board protection, though material selection depends on operating temperature ranges and chemical exposure. In applications requiring environmental validation, coated assemblies may be evaluated using a blowing rain test machine to verify resistance against wind-driven moisture intrusion. Coating thickness critically affects performance - insufficient coverage leaves vulnerabilities while excessive application creates stress concentrations during thermal cycling. Automated dispensing systems ensure uniform thickness across component topography, maintaining protection without compromising heat dissipation.

Advanced Sealing Technologies

Ultrasonic welding creates molecular bonds between thermoplastic housings, eliminating mechanical fasteners that create potential leak paths. Laser welding offers precision for complex geometries, though material compatibility limits applications. Overmolded gaskets integrate sealing elements directly into plastic components, reducing assembly steps and improving consistency compared to discrete gasket installations.

Pressure Equalization Without Moisture Entry

Gore-Tex vents and similar breathable membranes allow air passage while blocking liquid water, preventing pressure differential damage during altitude or temperature changes. Strategic vent placement considers internal air circulation patterns and condensation accumulation zones. Proper integration requires balancing pressure equalization rates against moisture exclusion performance across operating temperature ranges.

Protection Method	Effectiveness	Cost Impact	Maintenance Requirements
Conformal Coating	High for PCBs	Low	Reapplication after repairs
Ultrasonic Welding	Very High	Medium	None (permanent seal)
O-Ring Seals	Moderate-High	Low	Periodic replacement
Gore-Tex Vents	High	Medium	Inspection for contamination



Enhancing Product Lifespan Through Controlled Rain Testing

---

Accelerated Life Testing Methodologies

Compressed testing schedules simulate years of environmental exposure within weeks through elevated stress levels. The 0-999 minute adjustable test duration capability enables customized aging profiles matching anticipated product lifecycles. Cycling between wet and dry conditions with controlled heating - water temperature adjustable to +10°C above ambient, maximum 55°C - replicates diurnal patterns that stress materials differently than continuous exposure.

Failure Mode Identification and Prevention

Systematic testing reveals failure mechanisms before mass production, enabling design corrections at minimal cost. Statistical analysis of multiple test specimens identifies manufacturing process variations affecting water resistance. Failure documentation creates institutional knowledge preventing recurrence of resolved issues in subsequent product generations.

Design Validation Across Product Variants

Platform-based product lines benefit from testing representative configurations, establishing baseline performance expectations. Component substitutions - different display suppliers, alternative connector manufacturers - require revalidation to ensure equivalent water resistance. The 1000L chamber volume accommodates full-scale assemblies, eliminating uncertainties from component-level testing that may not predict system-level performance.



Verify Electronics Weatherproofing with LIB Industry MIL STD 810 G Rain Test Chambers

---

Model: RIM-1000 Interior Volume: 1000 L Turntable Load: 50 kg Turntable Diameter: 800 mm Door Lock: Electromagnetic lock Interior Material: SUS304 stainless steel Test Standard: MIL-STD-810H Test Time: 0 – 999 min, adjustable
Rain & Blowing Rain Final Rain Droplet Velocity: 9 m/s on test item Rainfall Rate≥ 1.7 mm/min Droplet Size: 0.5 – 4.5 mm Water Temperature: +10°C to max. +55°C
Drip Drip Area Dimensions: 1600 × 1000 mm, height adjustable Drip Hole Diameter: 20 – 25.4 mm Distance Between Holes: 25 mm Water Volume: ≥ 280 L/m²/h Water Temperature: +10°C to max. +55°C
Exaggerated Rain Nozzle Pressure: 276 kPa Rainfall Rate: 20.8 L/min Nozzle Arrangement: One nozzle per 0.56 m² of surface area, approx. 48 cm from test surface Droplet Size:0.5 – 4.5 mm

Comprehensive Testing Capability Integration

The RIM-1000 model features internal dimensions of 1000×1000×1000 mm, accommodating substantial test articles while maintaining precise environmental control. The 800 mm diameter turntable supports 50 kg payloads, enabling testing of complete outdoor installations including mounting hardware. 304 stainless steel construction throughout the MIL STD 810 G rain test chamber resists corrosion from continuous water exposure, ensuring measurement accuracy over decades of operation.

Precision Water Delivery Systems

Specialized shower nozzles produce droplet sizes ranging from 0.5 mm to 4.5 mm diameter, matching natural rainfall distributions specified in MIL-STD-810H. Integrated flow meters and rain gauges provide closed-loop feedback maintaining rainfall rates within ±5% of setpoints. The drip tray system with 20-25.4 mm holes spaced at 25 mm intervals delivers ≥280 L/m²/h for Procedure III testing, covering a 1600×1000 mm adjustable-height area.

Global Support Network and Calibration Assurance

CNAS/ILAC traceable calibration certificates accompany each chamber, documenting measurement uncertainty and ensuring regulatory compliance. LIB Industry's partnerships with Apple, IBM, Amazon, Intel, SGS, TUV, and Mercedes-Benz since 2009 demonstrate proven reliability in demanding applications. Service centers in Malaysia, Canada, the United Kingdom, and United States provide localized technical support with rapid response times for maintenance and operational assistance.

Specification	Value	Testing Standard
Final Droplet Velocity	9 m/s	MIL-STD-810H Procedure
Rainfall Rate (Standard)	≥1.7 mm/min	MIL-STD-810H Procedure I
Rainfall Rate (Exaggerated)	20.8 L/min	MIL-STD-810H Procedure II
Nozzle Pressure	276 kPa	MIL-STD-810H Procedure II
Water Temperature Range	Ambient +10°C (max 55°C)	MIL-STD-810H



Conclusion

---

Rain test chambers serve as indispensable tools for outdoor electronics manufacturers seeking to validate weatherproofing before field deployment. Through systematic evaluation using standardized protocols like MIL-STD-810H, engineers identify design vulnerabilities, optimize sealing strategies, and ensure long-term reliability. The controlled testing environment reveals failure modes that would otherwise manifest as costly warranty claims and brand reputation damage. Investing in comprehensive rain testing ultimately reduces development cycles while delivering products that withstand decades of environmental exposure.



FAQ​​​​​​​

---

What is the difference between IP rating water tests and MIL-STD-810 rain testing?

IP ratings evaluate static water resistance at specific angles and pressures, while MIL-STD-810 simulates dynamic environmental conditions including wind-driven rain, temperature variations, and extended exposure durations. Military standards provide more comprehensive validation for products facing harsh outdoor environments requiring proven long-term reliability beyond basic ingress protection certifications.

How long should outdoor electronics undergo rain chamber testing?

Testing duration depends on anticipated product lifespan and deployment environment severity. Typical protocols range from 30 minutes for basic water resistance to 24-hour cycles for critical infrastructure components. Accelerated testing with exaggerated conditions compresses years of exposure into manageable timeframes while maintaining correlation to real-world performance through validated acceleration factors.

Can rain test chambers identify condensation issues inside sealed enclosures?

Advanced chambers incorporate temperature control allowing test specimens to be heated relative to water temperature, simulating conditions that generate internal condensation. Monitoring internal humidity sensors and visual inspection through transparent windows detect fogging and moisture accumulation. Post-test teardown reveals hidden moisture pathways that external observation alone cannot identify.



Contact LIB Industry for Rain Test Chamber Solutions

---

LIB Industry, a leading environmental test chamber manufacturer, delivers turn-key solutions from design through installation and training. Our global service network ensures your testing requirements are met with precision and reliability. Contact our team at ellen@lib-industry.com to discuss your outdoor electronics testing needs.

Environmental testing chambers revolutionize how cosmetic manufacturers validate product stability and shelf-life predictions. A small climatic chamber simulates diverse temperature and humidity conditions that cosmetics encounter during storage, transportation, and consumer use. These compact testing solutions enable formulators to identify potential stability issues - such as phase separation, color changes, viscosity shifts, and microbial growth - before products reach market shelves. By exposing formulations to accelerated stress conditions, manufacturers can predict long-term performance within weeks rather than waiting years for real-time data. This proactive approach safeguards brand reputation, ensures regulatory compliance, and delivers consistent quality that consumers expect from premium cosmetic products.

This feedback highlights a customer’s experience using our compact climatic chambers for real-world electronic product testing. Their satisfaction underscores the reliability, precision, and consistent performance of our solutions, instilling confidence in manufacturers across automotive, aerospace, telecommunications, and consumer electronics industries.













How Temperature and Humidity Affect Cosmetic Formulations?

---

Understanding environmental impacts on cosmetic stability forms the foundation of effective product development and quality assurance strategies.

Temperature-Induced Phase Separation in Emulsions

Emulsion-based cosmetics like creams and lotions contain oil and water phases stabilized by emulsifiers. Temperature fluctuations weaken these molecular bonds, causing visible separation. Cold conditions increase viscosity and may crystallize certain oils, while heat accelerates chemical degradation and reduces emulsion stability. Testing across temperature ranges reveals formulation weaknesses before consumer complaints arise.

Humidity's Role in Microbial Proliferation

High humidity environments create ideal conditions for bacterial and fungal contamination, particularly in water-based formulations. Moisture ingress through packaging compromises preservative systems, reducing product safety. Conversely, low humidity conditions can cause moisture loss from products, altering texture and efficacy. Controlled humidity testing validates preservative effectiveness and packaging integrity.

Oxidative Degradation Under Heat Stress

Elevated temperatures accelerate oxidation reactions in cosmetic ingredients, particularly oils, fragrances, and active compounds. This chemical breakdown manifests as rancid odors, discoloration, and reduced therapeutic benefits. Antioxidant systems require validation under realistic thermal stress to ensure adequate protection throughout the product lifecycle.



Standard Test Profiles for Stability Evaluation in Cosmetics

---

Regulatory bodies and industry organizations establish specific testing protocols that ensure consistent evaluation methods across the cosmetics sector, often conducted in a small environmental test chamber to maintain controlled and repeatable conditions.

ICH Guidelines Adapted for Cosmetics

While originally designed for pharmaceuticals, International Council for Harmonisation (ICH) guidelines provide valuable frameworks for cosmetic stability testing. The Q1A guideline recommends storage at 25°C/60% RH for long-term studies and 40°C/75% RH for accelerated testing. These conditions predict shelf-life and identify degradation pathways efficiently.

Cyclic Temperature Testing Protocols

Real-world storage rarely maintains constant conditions. Cyclic testing alternates between temperature extremes to simulate seasonal variations and transportation scenarios. A typical protocol cycles between -20°C and +50°C over 24-hour periods, repeated for 30 cycles. This rigorous evaluation exposes vulnerabilities that static testing might miss.

Freeze-Thaw Cycle Requirements

Products distributed in cold climates must withstand repeated freezing without permanent damage. Freeze-thaw testing typically involves five cycles between -10°C and +25°C, with extended hold times at each extreme. Successful formulations return to original consistency and appearance after thawing, indicating robust emulsion systems.



Accelerated Aging Studies Using Climatic Chambers

---

Time-compressed testing methodologies allow rapid shelf-life predictions without compromising accuracy or reliability.

Arrhenius Equation Applications

The Arrhenius relationship establishes mathematical connections between temperature and reaction rates. Each 10°C temperature increase approximately doubles chemical reaction speeds. By testing at elevated temperatures, formulators calculate equivalent aging at room temperature. A three-month study at 40°C approximates two years at typical storage conditions.

Real-Time Versus Accelerated Comparison

Parallel testing strategies combine accelerated conditions with real-time monitoring to validate predictive models. Samples stored at 25°C/60% RH provide baseline data, while identical batches at 40°C/75% RH generate accelerated results. Correlation between datasets confirms prediction accuracy and establishes confidence intervals for shelf-life claims.

Challenge Testing for Preservative Efficacy

Accelerated microbial challenge tests evaluate preservative system performance under stress. Samples inoculated with specific bacterial and fungal strains undergo incubation at 30-35°C in a small humidity chamber to maintain controlled environmental conditions. Growth inhibition demonstrates adequate preservation, while proliferation indicates formulation weaknesses requiring reformulation.

Test Condition	Temperature	Humidity	Duration	Purpose
Long-term stability	25°C	60% RH	12-36 months	Real-time aging baseline
Accelerated stability	40°C	75% RH	3-6 months	Rapid shelf-life prediction
Stress testing	50°C	75% RH	1-3 months	Identify degradation pathways
Freeze-thaw	-10°C to +25°C	Ambient	5 cycles	Cold climate suitability



Evaluating Packaging and Product Interactions Under Environmental Stress

---

Container materials significantly influence product stability through chemical interactions and barrier properties that require thorough evaluation.

Material Compatibility Under Temperature Extremes

Plastic containers expand and contract with temperature changes, potentially causing leakage or contamination. Glass packaging remains dimensionally stable but may crack under thermal shock. Testing various packaging materials under temperature cycling identifies optimal container choices for specific formulations and distribution channels.

Moisture Vapor Transmission Rate Testing

Packaging barrier properties determine how quickly products lose or gain moisture. High moisture vapor transmission rates (MVTR) allow water evaporation from products or humidity ingress from environment. Testing MVTR under various humidity conditions ensures packaging maintains product integrity throughout shelf-life expectations.

Chemical Migration Between Product and Container

Certain formulation ingredients extract plasticizers, stabilizers, or colorants from packaging materials, causing contamination and structural weakening. Extended storage at elevated temperatures accelerates migration, revealing incompatibilities. Gas chromatography-mass spectrometry (GC-MS) analysis identifies migrated compounds and guides packaging selection.



Data Interpretation for Cosmetic Shelf-Life Prediction

---

Converting raw testing data into actionable shelf-life determinations requires statistical analysis and regulatory expertise.

Critical Quality Attribute Identification

Manufacturers establish specific parameters that define product acceptability - color specifications, pH ranges, viscosity limits, and microbial counts. Monitoring these critical quality attributes (CQAs) throughout testing reveals which properties degrade fastest, establishing shelf-life limitations.

Statistical Modeling for Degradation Kinetics

Zero-order, first-order, and Arrhenius kinetic models describe different degradation patterns. Plotting CQA changes over time identifies applicable models. Extrapolating these mathematical relationships predicts when products exceed acceptable limits, establishing defensible shelf-life claims.

Safety Margin Incorporation

Conservative shelf-life declarations account for manufacturing variability, distribution uncertainties, and consumer storage habits. Applying 0.8 or 0.9 multiplication factors to calculated shelf-life provides safety margins. This approach ensures products remain within specifications even under suboptimal handling conditions.

Parameter	Specification Range	Test Frequency	Failure Criteria
pH	5.0-7.0	Weekly	Outside ±0.3 units
Viscosity	8,000-12,000 cPs	Bi-weekly	±20% from initial
Color (ΔE)	<2.0	Monthly	Visible change ΔE >3.0
Microbial count	<100 CFU/g	Monthly	>1000 CFU/g
Preservative level	>90% of initial	Monthly	<80% of initial



Optimizing Cosmetic Formulations Through Controlled Environmental Testing

---

Iterative testing cycles drive formulation improvements that enhance stability, performance, and consumer satisfaction.

Emulsifier System Refinement

Comparing multiple emulsifier blends under identical stress conditions identifies superior stabilization systems. Testing various hydrophilic-lipophilic balance (HLB) values and concentrations reveals optimal combinations. Mini thermal chambers enable parallel testing of numerous formulation variants efficiently.

Antioxidant Selection and Optimization

Natural and synthetic antioxidants offer varying protection levels against oxidative degradation. Testing formulations containing different antioxidant systems at elevated temperatures quantifies protective efficacy. Synergistic combinations often outperform single antioxidants, requiring systematic evaluation.

Preservative System Development

Broad-spectrum preservation requires careful preservative selection and concentration optimization. Challenge testing under accelerated conditions validates microbial protection across pH ranges and formulation types. Adjusting preservative boosters and chelating agents enhances system robustness.

Chamber Model	Internal Volume	Temperature Range	Humidity Range	Ideal Applications
TH-50	50L	-20°C to +150°C	20-98% RH	Small-batch formulation testing
TH-80	80L	-40°C to +150°C	20-98% RH	Multiple sample parallel testing



Ensure Product Stability with LIB Industry Small Climatic Chambers

---

---

Parameter	Typical Range	Critical Impact
Temperature Range	-40°C to +150°C	Validates operation across consumer, industrial, military specifications
Humidity Control	20% to 98% RH	Simulates coastal, tropical, and controlled storage environments
Ramp Rate	1-5°C/min	Controls thermal shock severity and stress accumulation speed
Temperature Uniformity	±0.5°C	Ensures consistent exposure across multiple test samples
Recovery Time	<30 minutes	Maximizes testing throughput and reduces cycle duration
​		​

Temperature Setpoint Accuracy and Stability

Professional-grade environmental testing equipment provides the precision and reliability that cosmetic manufacturers require for comprehensive stability programs.

Compact Design for Space-Constrained Laboratories

Modern formulation laboratories often operate within limited floor space. The TH-50 model occupies minimal area while delivering full testing capabilities. Its 320×350×450mm internal chamber accommodates multiple sample sets simultaneously, maximizing testing efficiency without sacrificing workspace.

Precision Control for Reproducible Results

Advanced PID algorithms maintain temperature stability within ±0.5°C and humidity within ±2.5% RH. PT100 Class A sensors deliver 0.001°C resolution, ensuring consistent conditions throughout testing cycles. Centrifugal fans guarantee uniform air circulation, eliminating hot spots or humidity gradients that compromise data quality.

Programmable Touch Screen Interface

Intuitive controllers simplify complex testing protocol setup. Users program multi-step temperature and humidity profiles, including ramp rates, hold times, and cycle repetitions. Ethernet connectivity enables remote monitoring and data logging, facilitating compliance documentation and trend analysis across multiple test batches.



Conclusion

---

Environmental testing chambers serve as indispensable tools for cosmetic manufacturers committed to delivering stable, safe, and effective products. Small climatic chambers provide accessible stability testing capabilities that predict long-term performance through accelerated methodologies. Understanding temperature and humidity impacts, implementing standard testing protocols, and interpreting data accurately transform raw testing results into actionable formulation improvements. Investment in professional-grade testing equipment protects brand reputation, ensures regulatory compliance, and ultimately delivers superior products that meet consumer expectations throughout their intended shelf-life.



FAQ

---

What temperature range should I use for cosmetic stability testing?

Long-term studies typically use 25°C/60% RH, while accelerated testing employs 40°C/75% RH. Stress testing at 50°C identifies degradation pathways. The specific range depends on your product's intended market climate and distribution conditions.

How long should accelerated stability studies run for cosmetics?

Accelerated studies generally run 3-6 months at elevated conditions (40°C/75% RH). This timeframe provides sufficient data for shelf-life extrapolation using Arrhenius calculations, predicting 2-3 years of real-time aging equivalency.

Can small climatic chambers test multiple formulations simultaneously?

Absolutely. The TH-50 and TH-80 models feature adjustable shelving supporting up to 50kg per level. This capacity accommodates numerous samples, enabling parallel comparison testing of formulation variants under identical environmental conditions.

Ready to enhance your cosmetic stability testing program? LIB Industry, a leading manufacturer and supplier of small climatic chamber, provides comprehensive solutions tailored to cosmetic testing requirements. Contact our team at ellen@lib-industry.com to discuss how our small climatic chambers can elevate your quality assurance processes.

Enclosure protection against water ingress represents one of the most critical validation processes in product development. When wind-driven precipitation contacts sealed housings at realistic velocities and trajectories, it exposes vulnerabilities that static water tests cannot reveal. A blowing rain test chamber simulates these demanding conditions by combining controlled rainfall rates with directional airflow, allowing engineers to identify seal weaknesses, gasket failures, and drainage system inadequacies before products reach the field. This testing methodology proves essential for outdoor electronics, military equipment, transportation components, and any system expected to maintain operational integrity during severe weather events. Understanding the mechanisms of water penetration under dynamic conditions enables manufacturers to design robust protection systems that withstand years of environmental exposure.



What Defines Effective Enclosure Protection Against Water?

---

Material Selection and Surface Treatment

Enclosure materials must resist both immediate water contact and long-term moisture exposure. Aluminum alloys with anodized surfaces provide excellent corrosion resistance, while engineered polymers offer lighter weight alternatives with inherent hydrophobic properties. The surface finish directly impacts water behavior - smooth surfaces encourage droplet runoff, whereas textured finishes may trap moisture in microscopic crevices. Engineers evaluate coating adhesion, chemical compatibility with sealing compounds, and thermal expansion characteristics that affect seal compression over temperature cycles.

Seal Design and Compression Ratios

Gasket geometry determines sealing effectiveness under varying water pressures. Compression seals require precise groove dimensions to maintain consistent force distribution across the entire perimeter. O-rings, D-profiles, and custom extruded shapes each offer distinct advantages depending on joint configuration and expected deflection. The compression ratio - typically ranging from 15% to 30% of original gasket height - must balance adequate sealing force against excessive material deformation that causes permanent set. Multi-lip designs provide redundant barriers where single seals prove insufficient.

Drainage Architecture and Water Management

Effective enclosures incorporate intentional drainage pathways that prevent water accumulation near critical seal interfaces. Drainage channels, weep holes, and sloped interior surfaces direct water away from vulnerable components. The drainage rate must exceed the maximum expected water ingress rate during testing. Engineers position drainage exits to prevent water from splashing back toward sealed openings during high wind conditions. Labyrinth-style drain paths provide protection without compromising the enclosure's overall integrity rating.



Common Failure Modes in Sealed Housings Under Rain Exposure

---

Capillary Action Through Micro-Gaps

Water molecules exhibit strong cohesive forces that enable upward migration through gaps measuring only micrometers in width. This capillary action becomes particularly problematic in threaded fastener assemblies and mating surface irregularities where manufacturing tolerances create unintended pathways. The phenomenon intensifies when surface tension draws water into horizontal joints that appear adequately sealed under static conditions. Engineers must account for surface roughness values and implement secondary barriers where capillary intrusion poses risks.

Pressure Differential-Induced Ingress

Enclosures experience internal pressure changes due to temperature fluctuations, altitude variations, or equipment operation. These pressure differentials create driving forces that push external water through compromised seals, a condition often evaluated in a rain test chamber. A 10°C temperature drop can generate sufficient negative pressure to draw water past gaskets that performed adequately under ambient conditions. Breathing membranes or pressure equalization vents become necessary for enclosures experiencing significant thermal cycling, though these components introduce additional sealing challenges.

Seal Degradation from Environmental Exposure

Ultraviolet radiation, ozone, temperature extremes, and chemical exposure progressively degrade elastomeric seal materials. Hardening occurs as plasticizers migrate from the polymer matrix, reducing the seal's ability to maintain contact pressure. Conversely, excessive softening from hydrocarbon exposure causes extrusion under compression loads. The degradation rate accelerates when multiple stressors act simultaneously - UV exposure combined with thermal cycling produces synergistic effects that standard aging predictions may underestimate.

Failure Mode	Primary Cause	Detection Method	Mitigation Strategy
Capillary Ingress	Micro-gap formation	Dye penetrant testing	Surface finishing, sealant application
Pressure-driven Leaks	Thermal cycling effects	Pressure decay monitoring	Equalization vents, flexible seals
Seal Degradation	UV and chemical exposure	Material hardness testing	UV-stable compounds, protective coatings



Designing Blowing Rain Test Profiles for Enclosures

---

Matching Test Conditions to Service Environment

Test profile development begins with comprehensive environmental characterization of the product's operational context. Climate data reveals typical and extreme precipitation rates, prevailing wind directions, and concurrent temperature ranges. Military standards like MIL-STD-810H Method 506.6 provide baseline parameters, but custom profiles better represent specific deployment scenarios. A telecommunications enclosure in coastal regions requires different test parameters than industrial equipment in continental climates. Engineers analyze historical weather records to determine appropriate rainfall intensities - ranging from light drizzle at 1.7 mm/min to severe storms exceeding 20 mm/min.

Wind Speed and Trajectory Configuration

Wind-driven rain strikes surfaces at angles far removed from vertical, creating unique infiltration pathways not challenged by overhead spray alone. Test chamber configurations must replicate these oblique impact angles through coordinated fan and nozzle positioning. Wind speeds between 9-25 m/s represent the critical range where droplet momentum overcomes surface tension effects. The rotating turntable functionality ensures exposure from all orientations, revealing direction-dependent vulnerabilities. Engineers program specific dwell times at critical angles where joint configurations appear most susceptible.

Temperature Differential Integration

Water temperature relative to the test specimen creates thermal gradients that affect both seal performance and internal condensation formation. MIL-STD specifications require water temperature to exceed specimen temperature by at least 10°C, with maximum differentials reaching 15°C for certain applications. This heating simulates rain striking sun-warmed enclosures, a condition that accelerates water migration through temperature-induced pressure changes. The blowing rain test chamber's heating system maintains precise water temperatures up to 55°C while monitoring specimen surface temperatures to verify specified differentials.



Monitoring Water Penetration and Seal Integrity

---

Real-Time Detection Methodologies

Advanced monitoring systems track water ingress as it occurs rather than relying solely on post-test inspection during evaluation in a rain test machine. Moisture sensors positioned at strategic internal locations provide immediate alerts when water breaches primary seals. Conductivity measurements between isolated contact points detect even microscopic water films. High-resolution imaging through transparent test sections allows direct observation of water behavior at seal interfaces. Data logging systems capture sensor outputs continuously throughout the test duration, creating comprehensive records of seal performance under varying conditions.

Pressure Decay Analysis During Testing

Internal pressure monitoring reveals seal integrity through leak detection principles. Technicians pressurize the enclosure interior to a reference value, then monitor pressure changes during rain exposure. Rapid pressure drops indicate significant seal failures, while gradual decay suggests minor permeation or micro-leakage pathways. The decay rate correlates with effective leak size, enabling quantitative comparison between design iterations. This approach proves particularly valuable for large enclosures where visual inspection of all seal surfaces becomes impractical.

Post-Test Qualification Procedures

Systematic inspection protocols ensure thorough evaluation after test completion. Internal surfaces receive examination under bright lighting to identify water trails, droplet accumulation, or corrosion initiation. Moisture meters quantify residual dampness in insulation materials and electronic assemblies. Seals undergo dimensional verification to detect permanent compression set or extrusion damage. Electrical continuity tests on internal components verify continued functionality. Disassembly of critical seal joints reveals subtle intrusion that surface inspection missed. Documentation includes photographic evidence of any observed degradation.

Monitoring Parameter	Measurement Technique	Acceptable Threshold	Recording Frequency
Internal Humidity	Capacitive RH sensors	<90% RH throughout test	Every 60 seconds
Surface Conductivity	Interdigitated electrodes	No continuous path formation	Continuous monitoring
Pressure Retention	Differential transducers	<5% decay over test duration	Every 30 seconds



Data Analysis and Interpretation for Enclosure Qualification

---

Statistical Evaluation of Seal Performance

Multiple test specimens provide data sets enabling statistical analysis of seal reliability. Engineers calculate mean time to water ingress and construct failure distribution curves. Weibull analysis characterizes seal degradation mechanisms and predicts field performance. Sample sizes typically range from 5-10 units per design configuration, balancing statistical confidence against testing costs. Outlier identification separates manufacturing defects from systematic design weaknesses. This statistical framework supports reliability predictions and warranty coverage decisions.

Correlation with Field Failure Data

Accelerated laboratory testing must correlate with actual field performance to validate test profile appropriateness. Manufacturers collect warranty return data and conduct failure analysis on units experiencing water intrusion. Comparison between laboratory test results and field failure modes confirms whether testing parameters adequately stress seal systems. Discrepancies prompt test profile adjustments or reveal additional environmental factors requiring consideration. This feedback loop continuously improves test methodology relevance.

Design Optimization Through Iterative Testing

Test data guides systematic design improvements targeting identified vulnerabilities. Engineers implement seal geometry modifications, material substitutions, or drainage enhancements based on specific failure observations. Subsequent testing validates effectiveness of these changes and may reveal new secondary failure modes. The iterative process continues until performance meets specifications with adequate margin. Documentation of each design iteration creates knowledge repositories that inform future product development.



Enhancing Product Reliability Through Controlled Rain Simulation

---

Validating Seal Longevity and Aging Effects

Accelerated aging protocols combined with blowing rain testing predict long-term seal performance. Specimens undergo thermal cycling, UV exposure, or chemical immersion before rain testing to simulate years of service degradation. Comparison between fresh and aged specimens quantifies reliability degradation rates. This approach identifies seal materials requiring replacement intervals or reveals designs maintaining adequate performance throughout product lifetime. Military and aerospace applications particularly benefit from this longevity validation.

Qualification Testing for International Standards

Multiple regulatory frameworks govern water protection requirements across different industries. The IP (Ingress Protection) rating system defines protection levels from IPX0 (no protection) through IPX9K (high-pressure hot water). Automotive standards specify different test parameters than marine equipment certifications. A properly configured blowing rain test chamber accommodates various standard requirements through programmable parameter adjustment. Compliance documentation supports market access and liability protection.

Production Quality Verification Programs

Beyond initial design validation, manufacturers implement ongoing quality verification testing on production units. Statistical sampling of finished goods undergoes abbreviated test protocols confirming manufacturing consistency. This monitoring detects process drift, material substitutions, or assembly variations affecting seal integrity. Early detection prevents field failures and associated warranty costs. The test data contributes to process control charts and continuous improvement initiatives.

Application Sector	Relevant Standard	Key Test Parameters	Typical Acceptance Criteria
Military Electronics	MIL-STD-810H Method 506.6	9 m/s wind, 1.7 mm/min rain	No internal water presence
Outdoor Lighting	IEC 60529 (IPX6)	100 L/min @ 100 kPa	No harmful water ingress
Automotive Enclosures	ISO 20653	Spray pattern per standard	Maintain functionality



Prevent Water Ingress Failures with LIB Industry Blowing Rain Test Chambers

---

Model: RIM-1000 Interior Volume: 1000 L Turntable Load: 50 kg Turntable Diameter: 800 mm Door Lock: Electromagnetic lock Interior Material: SUS304 stainless steel Test Standard: MIL-STD-810H Test Time: 0 – 999 min, adjustable
Rain & Blowing Rain Final Rain Droplet Velocity: 9 m/s on test item Rainfall Rate≥ 1.7 mm/min Droplet Size: 0.5 – 4.5 mm Water Temperature: +10°C to max. +55°C
Drip Drip Area Dimensions: 1600 × 1000 mm, height adjustable Drip Hole Diameter: 20 – 25.4 mm Distance Between Holes: 25 mm Water Volume: ≥ 280 L/m²/h Water Temperature: +10°C to max. +55°C
Exaggerated Rain Nozzle Pressure: 276 kPa Rainfall Rate: 20.8 L/min Nozzle Arrangement: One nozzle per 0.56 m² of surface area, approx. 48 cm from test surface Droplet Size:0.5 – 4.5 mm

Advanced Multi-Directional Spray Technology

LIB Industry's RIM-1000 model incorporates sophisticated spray nozzle arrays delivering uniform water distribution across test surfaces. The 360-degree ring configuration ensures complete coverage regardless of specimen geometry. Mobile spray heads adjust vertically and horizontally, accommodating enclosures from compact electronics to large equipment assemblies. The rotating turntable operates from 1-7 rpm, providing controlled exposure from all orientations. This comprehensive approach eliminates testing blind spots that single-direction spray systems create.

Comprehensive Testing Capabilities

The system supports three distinct test modes addressing different evaluation requirements. Rain and blowing rain mode delivers 9 m/s droplet velocities at rainfall rates meeting MIL-STD specifications. Exaggerated rain mode increases intensity to 20.8 L/min through nozzles pressurized to 276 kPa, accelerating seal evaluation. Drip mode simulates overhead water accumulation with 280 L/m²/h delivery across the 1600×1000 mm drip plate. Engineers select appropriate modes based on product application and testing objectives. The water heating system maintains temperatures from ambient to 55°C, enabling specified thermal differentials.

Superior Control and Monitoring Systems

The advanced HMI displays simultaneous real-time curves for wind speed, water flow, pressure, and temperature parameters. This multi-parameter monitoring ensures precise test condition maintenance throughout evaluation cycles. Pre-programmed test profiles based on common standards accelerate workflow setup. Custom programming options accommodate unique testing protocols for specialized applications. The control system automatically logs all test data, generating comprehensive reports for qualification documentation. Built-in safety interlocks protect both test specimens and chamber components during operation.



Conclusion

---

Blowing rain testing provides irreplaceable validation of enclosure water protection under realistic environmental conditions. The combination of controlled rainfall, directional wind, and thermal differentials reveals seal vulnerabilities that simpler tests cannot detect. Systematic test profile development, comprehensive monitoring, and rigorous data analysis ensure products withstand field conditions throughout their service life. Manufacturers investing in proper validation reduce warranty costs and enhance brand reputation through reliable performance.



FAQ

---

What rainfall rate represents severe storm conditions in blowing rain testing?

Severe storm simulation typically requires rainfall rates between 15-25 mm/min combined with wind speeds exceeding 15 m/s. Standard testing uses 1.7 mm/min as a baseline, while accelerated protocols employ rates up to 20.8 L/min for rapid seal evaluation.

How does water temperature affect enclosure seal performance during testing?

Elevated water temperature creates thermal gradients causing internal pressure changes and accelerated seal material degradation. The temperature differential simulates realistic sun-heated enclosure conditions where warm surfaces contact cool rain, stressing seals beyond ambient temperature testing scenarios.

Can blowing rain chambers test both horizontal and vertical surface orientations?

Modern chambers incorporate rotating turntables enabling 360-degree specimen exposure at programmable rotation speeds. Combined with adjustable spray angles and multi-directional wind generation, these systems evaluate all surface orientations including undersides where drainage effectiveness becomes critical.

Partner with LIB Industry for comprehensive environmental testing solutions. As a leading blowing rain test chamber manufacturer and supplier, we deliver turn-key testing systems backed by ISO 9001 certification and three-year warranties. Our engineering team provides custom chamber designs meeting your specific validation requirements. Contact us at ellen@lib-industry.com to discuss your enclosure testing needs.

Vibration test chambers play a critical role in verifying whether products meet rigorous MIL-STD and IEC compliance requirements. These specialized environmental simulation systems replicate real-world mechanical stress conditions, enabling manufacturers to validate product durability before deployment. Military standards like MIL-STD-810 and international guidelines such as IEC 60068 establish specific vibration protocols that components must withstand. By utilizing advanced vibration test chambers equipped with precise frequency control, temperature integration, and data acquisition capabilities, organizations can demonstrate regulatory conformance while identifying potential failure modes early in the development cycle, ultimately reducing field failures and warranty costs.

The reliability of LIB Industry vibration test chambers extends beyond specifications, demonstrating consistent performance in real-world operations. A leading Italian electronics manufacturer recently reported excellent results after integrating a LIB vibration chamber into their testing workflow. They noted uninterrupted, stable operation and praised the equipment’s precision and durability. Equally, they highlighted the responsive technical support provided by LIB, which has strengthened their trust in both the product and the brand. This testimonial underscores how LIB vibration test chambers consistently meet the rigorous demands of electronics and automotive testing across Europe and other international markets.



What Are the Key Vibration Requirements in MIL-STD and IEC Standards?

---

Understanding MIL-STD-810 Vibration Protocols

MIL-STD-810 Method 514 defines vibration testing procedures for military equipment exposed to transportation, handling, and operational environments. The standard specifies acceleration levels, frequency ranges, and duration parameters tailored to specific platform categories including ground vehicles, aircraft, and naval vessels. Test profiles incorporate both sinusoidal sweeps and random vibration patterns that mirror actual mission conditions.

IEC 60068-2-6 and IEC 60068-2-64 Requirements

IEC standards establish internationally recognized vibration testing frameworks for commercial and industrial electronics. IEC 60068-2-6 addresses sinusoidal vibration exposure, while IEC 60068-2-64 focuses on random vibration testing. These specifications define severity levels ranging from gentle handling conditions to harsh industrial environments, with frequency spans typically covering 10 Hz to 2000 Hz depending on application severity.

Frequency Range and Acceleration Specifications

Both standard families mandate specific frequency boundaries and acceleration magnitudes. MIL-STD protocols often require testing from 1 Hz to 2000 Hz with acceleration levels reaching 10 Grms or higher. IEC standards typically specify narrower ranges between 10 Hz and 500 Hz with lower acceleration values. Understanding these parametric differences ensures proper test chamber selection and configuration.



Differences Between Military and IEC Vibration Test Profiles

---

Test Duration and Cycle Requirements

Military standards generally impose longer test durations reflecting extended field deployment scenarios. MIL-STD-810 may require continuous vibration exposure exceeding 12 hours per axis, whereas IEC standards often specify shorter durations measured in minutes or single-digit hours. This distinction reflects different reliability philosophies between defense applications and commercial product lifecycles.

Environmental Conditioning Integration

MIL-STD testing frequently combines vibration with simultaneous temperature and humidity exposure, simulating multi-stress operational conditions. The standard recognizes that electronic assemblies experience thermal cycling during vibration in actual deployment. IEC protocols traditionally separate environmental stressors, though combined testing options exist. This fundamental approach difference influences chamber design and capability requirements.

Fixture and Mounting Specifications

Military standards provide detailed guidance on specimen mounting techniques, including fixture rigidity requirements and attachment methods. IEC standards offer more flexibility in mounting approaches, allowing manufacturers greater discretion in test setup design. Proper fixture selection dramatically impacts test validity, as resonance amplification or damping can distort applied vibration energy.

Standard Type	Typical Frequency Range	Acceleration Levels	Test Duration
MIL-STD-810G/H	1 Hz - 2000 Hz	Up to 10+ Grms	2-12+ hours/axis
IEC 60068-2-6	10 Hz - 500 Hz	0.5-2.0 Grms	10-90 minutes
IEC 60068-2-64	10 Hz - 2000 Hz	1-5 Grms	30-120 minutes



How Vibration Test Chambers Support Compliance Verification



---

Controlled Environmental Simulation Capabilities

Modern vibration chambers integrate multiple environmental parameters within single systems. Temperature ranges spanning -70℃ to +150℃ combine with humidity control between 20% and 98% RH, enabling simultaneous multi-parameter stress testing. This integrated approach allows direct verification against combined environmental specifications without transferring specimens between separate chambers, maintaining test integrity.

Precision Vibration Generation Systems

High-performance electrodynamic shakers form the core of compliance-grade test chambers. Digital power amplifiers employing sine pulse width modulation technology deliver precise waveform control across broad frequency spectrums. Shaker systems rated for 1000 kgf force capacity with armature diameters of 240mm accommodate substantial test articles while maintaining acceleration uniformity across the test platform.

Data Acquisition and Documentation Systems

Compliance testing demands comprehensive data recording for regulatory submission. Advanced chambers incorporate multi-channel accelerometer inputs, temperature sensors, and humidity monitors that continuously log environmental parameters throughout test sequences. Automated reporting functions generate compliance documentation including acceleration profiles, environmental histories, and statistical analysis required for certification submissions.



Sinusoidal vs Random Vibration in Standards-Based Testing

---

Sinusoidal Sweep Characteristics and Applications

Sinusoidal vibration testing applies discrete frequency tones that sweep through specified ranges at controlled rates. This methodology effectively identifies resonant frequencies where structural amplification occurs. MIL-STD-810 Method 514 Category 8 and IEC 60068-2-6 both utilize sine sweeps for resonance search procedures, typically conducting logarithmic sweeps at one octave per minute.

Random Vibration Profile Development

Random vibration testing simultaneously applies broadband frequency content matching statistical power spectral density specifications. This approach better replicates complex real-world vibration environments where multiple frequencies occur concurrently. Random profiles are defined by acceleration density expressed in G²/Hz across frequency bands, with shaped spectra matching transportation or operational environments.

Selecting Appropriate Test Methods

Standard selection depends on product application and exposure scenarios. Transportation packaging validation typically employs random vibration matching truck or aircraft spectra. Structural integrity assessment often begins with sine sweeps to locate vulnerable resonances, followed by random testing at resonant peaks. Electronic assemblies mounted in vehicles generally require random testing reflecting road input characteristics.

Vibration Type	Frequency Control	Typical Application	Standard Reference
Sinusoidal Sweep	Discrete tones, logarithmic progression	Resonance identification	MIL-STD-810 Cat 8, IEC 60068-2-6
Random Vibration	Broadband spectrum, PSD defined	Transportation simulation	MIL-STD-810 Cat 4-7, IEC 60068-2-64
Sine-on-Random	Combined discrete + broadband	Complex machinery environments	Specialized requirements



Test Setup and Instrumentation for Compliance Vibration Testing



---

Accelerometer Placement and Calibration

Control accelerometers must be positioned according to standard specifications, typically at fixture interfaces or designated control points. Reference accelerometers mounted on test specimens monitor response characteristics and verify applied energy transmission. All transducers require current calibration certificates traceable to national standards, with calibration intervals not exceeding manufacturer recommendations or standard requirements.

Fixture Design Considerations

Test fixtures should possess fundamental resonances exceeding the highest test frequency by minimum factors of 2-3, preventing fixture dynamics from contaminating specimen response. Aluminum and magnesium alloys provide lightweight rigidity for larger fixtures, while steel constructions suit heavier assemblies. Finite element analysis often validates fixture designs before fabrication, ensuring compliance with rigidity requirements.

Chamber Configuration and Environmental Controls

Proper vibration test chamber setup involves positioning the specimen within the controlled zone where temperature and humidity uniformity meet specification limits. Head expanders extending shaker table dimensions accommodate larger specimens while maintaining vibration uniformity. Horizontal sliding tables enable testing along multiple axes without specimen reorientation, reducing handling risks and setup time.



Common Compliance Pitfalls in MIL-STD and IEC Vibration Tests

---

Inadequate Pre-Test Functional Verification

Standards require documented functional performance baselines established before vibration exposure. Rushing through pre-test functional checks or inadequately documenting baseline performance creates ambiguity when post-test failures occur. Comprehensive pre-test characterization including electrical parameters, mechanical measurements, and operational performance benchmarks provides clear pass-fail criteria for compliance assessment.

Insufficient Test Article Conditioning Time

Environmental conditioning before initiating vibration sequences ensures specimens reach thermal equilibrium at specified test temperatures. Inadequate soak periods result in thermal gradients within assemblies, potentially affecting structural response or creating condensation issues during testing. Standards typically mandate stabilization periods allowing specimen temperatures to reach within specified tolerances of chamber conditions.

Improper Data Recording and Report Generation

Compliance documentation must include complete test parameters, environmental profiles, specimen identification, and functional test results. Missing accelerometer calibration certificates, incomplete temperature records, or absent functional test data compromise certification submissions. Automated data logging systems configured to capture all required parameters throughout test sequences prevent documentation gaps.

Pitfall Category	Common Error	Prevention Strategy
Pre-Test Verification	Incomplete functional baseline	Establish comprehensive test protocols with documented acceptance criteria
Thermal Conditioning	Inadequate soak time	Follow standard-specified stabilization periods, monitor specimen temperatures
Data Documentation	Missing calibration records	Implement automated data acquisition with calibration certificate archiving



Meet Strict Standards Easily Using LIB Industry's Vibration Test Chambers



---

Model		THV-1000
Internal Dimension (mm)		1000*1000*1000
Overall Dimension (mm)		1800*4600*2600
Interior Volume		1000L
Parameter	Temperature Range	—50℃ ～ +150 ℃
	Temperature Fluctuation	± 0.5 ℃
	Temperature Deviation	± 2.0 ℃
	Humidity Range	30% ~ 98% RH
	Humidity Deviation	± 2.5% RH
	Cooling Rate	5 ℃ / min
	Heating Rate	5 ℃ / min
	Rated Force of Vibration	1000kgf
	Frequency Range of Vibration	2 to 4000 Hz
	Armature Diameter of shaker	φ240mm
Structure	Cooling	Cooling system	Mechanical compression refrigeration system
		Refrigerating unit	French TECUMSEH compressor
		Refrigerant	R404A, R23
	Heating Element	Nichrome heater
	Controller	Programmable color LCD touch screen controller，Ethernet connection， USB
	Humidity	Water supply system	Automatic water supply
		Water supply system	Water purification system
		Humidifier	External isolation, stainless steel surface evaporation humidifier
		Dehumidification	Evaporator
	Vibration	horizontal sliding table	600*600 mm
		Power Amplifier	Digital power amplifier
		Head Expander	600*600 mm
		Blower	4Kw blower, including muffler.
		Max load	500kgs
	Sensor	Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
		Humidity Sensor	Dry and wet bulb sensor
	Build-in Water Tank (mm)	270*300*450
	View Window Size (mm)	330*370
	Air Circulation	Centrifugal wind fan
	Safety Device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Material	Exterior Material	Steel Plate with protective coating
	Interior Material	SUS304 stainless steel
	Thermal Insulation	Polyurethane foam and insulation cotton
	Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration		Cable hole with plug; 2 shelves
Power Supply		380V 50Hz

Integrated Multi-Parameter Testing Capabilities

LIB Industry vibration test chambers combine temperature ranges from -70℃ to +150℃ with humidity control spanning 20% to 98% RH, enabling complete MIL-STD and IEC compliance verification within single systems. The mechanical compression refrigeration system delivers cooling rates of 5℃ per minute, while controlled heating maintains equivalent warming rates, supporting rapid thermal cycling protocols specified in advanced military standards.

Advanced Vibration System Architecture

Our digital power amplifier technology with sine pulse width modulation ensures precise waveform generation across the complete 2 to 4000 Hz frequency spectrum. The 1000 kgf rated force capacity accommodates substantial test articles, while the φ240mm armature diameter and 600×600mm horizontal sliding table support diverse specimen configurations. Both vertical and horizontal axis testing capabilities with 500 kg maximum load enable comprehensive directional compliance verification.

Comprehensive Safety and Control Features

LIB chambers incorporate multiple protection systems including humidifier dry-combustion protection, over-temperature protection, over-current safeguards, refrigerant high-pressure monitoring, water shortage detection, and earth leakage protection. These integrated safety features ensure unattended operation during extended compliance test sequences. The SUS304 stainless steel interior with polyurethane foam insulation provides long-term durability and temperature uniformity critical for repeatable compliance testing.



Conclusion

---

Vibration test chambers serve as indispensable tools for manufacturers pursuing MIL-STD and IEC compliance certification. Understanding the distinct requirements between military and commercial standards enables appropriate test methodology selection and chamber specification. Proper instrumentation, fixture design, and environmental integration ensure valid compliance verification while avoiding common testing pitfalls. Advanced vibration test systems with integrated temperature and humidity control capabilities streamline the compliance process, reducing certification timelines and enhancing product reliability confidence.



FAQ

---

Can a single vibration test chamber accommodate both MIL-STD-810 and IEC 60068 testing requirements?

Modern integrated chambers with wide frequency ranges (1-4000 Hz), high force capacity, and combined environmental control capabilities can execute both military and commercial standard protocols. The key requirements include sufficient acceleration levels, temperature integration, and flexible control software supporting diverse waveform profiles specified across different standards.

What is the typical test duration difference between MIL-STD and IEC vibration protocols?

Military standards generally require significantly longer exposure durations, often 2-12 hours per axis, reflecting extended field deployment scenarios. Commercial IEC standards typically specify shorter durations ranging from 10 minutes to 2 hours, recognizing different product lifecycle expectations and commercial equipment usage patterns compared to defense applications.

How do combined temperature and vibration tests impact compliance verification compared to separate testing?

Combined environmental testing provides more realistic simulation of actual operational conditions where products experience simultaneous thermal and mechanical stress. This approach often reveals failure modes not detected during separate testing, as thermal expansion, material property changes, and stress interactions occur concurrently, yielding more comprehensive reliability assessment for compliance purposes.

Ready to ensure your products meet MIL-STD and IEC vibration standards? LIB Industry, a leading vibration test chamber manufacturer and supplier, provides turn-key environmental testing solutions tailored to your compliance requirements. Our expert team delivers comprehensive support from design through commissioning, installation, and training. Contact us today at ellen@lib-industry.com to discuss your specific testing needs and discover how our advanced chambers can streamline your certification process.

Fasteners, bolts, and connectors serve as critical joining elements across automotive, aerospace, marine, and construction applications. Their exposure to moisture, chlorides, and atmospheric pollutants makes them prime candidates for accelerated corrosion. Salt spray testing conducted in a controlled salt spray test chamber replicates decades of environmental degradation in laboratory conditions, allowing manufacturers to validate protective coatings, assess material compatibility, and predict service life. This standardized methodology transforms quality assurance from reactive failure analysis into proactive design validation, ensuring that these small yet essential components maintain structural integrity throughout their intended operational lifespan.

A recent customer from Argentina shared their experience using the chamber for paint coating evaluation. They highlighted how the controlled salt spray tests allowed them to observe coating performance under harsh conditions, identify weak spots before large-scale production, and adjust formulations efficiently. According to them, the chamber’s consistent environment and precise control significantly improved the reliability of their results, helping their team make confident decisions on coating durability and finish quality.

Why Fasteners and Connectors Are Vulnerable to Corrosion?

---

High Surface-Area-to-Volume Ratios Accelerate Degradation

Fasteners possess geometric configurations that concentrate corrosive attack. Threads, underhead fillets, and point geometries create crevices where electrolytes accumulate, establishing galvanic cells that accelerate metal dissolution. The small cross-sectional dimensions mean even minor material loss significantly compromises mechanical properties.

Dissimilar Metal Combinations Create Galvanic Couples

Assembly requirements frequently necessitate joining different alloys - steel bolts securing aluminum panels, brass connectors mating with steel terminals. These configurations establish electrochemical potential differences, driving accelerated corrosion at contact interfaces. The galvanic series dictates which member becomes anodic, suffering preferential attack while the cathode remains protected.

Stress Concentrations Enable Environmentally Assisted Cracking

Threaded regions experience stress intensification during installation and operational loading. When combined with corrosive environments, these stress concentrations initiate stress corrosion cracking and hydrogen embrittlement. Cracks propagate through load-bearing cross-sections, causing sudden catastrophic failures without visible warning signs.



Material and Coating Selection for Corrosion Resistance

---

Substrate Material Performance Characteristics

Carbon steel fasteners offer economical solutions but require protective coatings for most applications. Stainless steel grades (304, 316, 410) provide inherent corrosion resistance through chromium oxide passivation, though chloride environments can breach this protection. Aluminum alloys combine lightweighting benefits with natural oxide formation, while titanium alloys deliver exceptional resistance for aerospace and marine deployments.

Metallic Coating Systems and Thickness Requirements

Zinc plating remains the industry standard, sacrificially corroding to protect the steel substrate. Electroplated zinc typically achieves 5-15 micrometers thickness, while hot-dip galvanizing provides 45-85 micrometers for extended protection. Cadmium coatings excel in aerospace applications but face environmental restrictions. Zinc-nickel alloys deliver enhanced performance, particularly in high-temperature automotive environments.

Organic Coating Technologies for Enhanced Protection

Conversion coatings (chromate, phosphate, trivalent chromium) provide thin protective layers and improve paint adhesion. Powder coatings and liquid paint systems create barrier protection, though mechanical damage during assembly can compromise integrity. Multi-layer systems combining metallic undercoats with organic topcoats optimize both sacrificial and barrier protection mechanisms. Testing these coatings' durability in a salt spray test machine allows manufacturers to assess the protective effectiveness of various coating systems under accelerated corrosion conditions, ensuring they meet performance requirements.



Salt Spray Test Standards for Fasteners and Connectors

---

ASTM B117 Neutral Salt Spray Protocol



This foundational standard specifies continuous spraying of 5% sodium chloride solution at 35°C with 95-98% relative humidity. Test durations range from 24 hours for basic screening to 1000+ hours for severe marine environments. The chamber atomizes the salt solution through pressure nozzles, creating a fog that settles uniformly across specimen surfaces.

Parameter	Specification	Purpose
Salt Concentration	5% NaCl (w/v)	Simulates seawater chloride levels
Chamber Temperature	35 ± 2°C	Accelerates electrochemical reactions
Humidity Range	95-98% RH	Maintains continuous electrolyte film
Fog Collection Rate	1-2 mL/80cm²·h	Ensures consistent exposure intensity

ISO 9227 Acetic Acid and Copper-Accelerated Variants

While neutral salt spray provides baseline data, ISO 9227 defines accelerated test methods. The acetic acid salt spray (AASS) reduces pH to 3.1-3.3, intensifying attack on zinc and aluminum coatings. Copper-accelerated acetic acid salt spray (CASS) incorporates copper chloride, further accelerating corrosion of anodized aluminum and organic coatings, compressing test durations by factors of 4-10.

Automotive and Aerospace Specific Requirements

General Motors GMW 14872 and Ford CETP 00.00-L-467 specify cyclic exposure combining salt spray, humidity, and ambient drying. These protocols better replicate real-world conditions where wet-dry cycling concentrates corrosive species. Aerospace standards like ASTM F1941 define requirements for specific fastener grades, correlating test performance with field experience data.



Performance Evaluation Criteria After Salt Spray Exposure



---

Visual Appearance and Defect Categorization

Examiners assess corrosion products (white, red, or black rust), blistering, pitting density, and coating adhesion. Rating systems quantify degradation severity, with photographic standards ensuring consistency across evaluators. Localized attack at crevices, threads, and cut edges receives particular scrutiny as these regions initiate failure mechanisms.

Dimensional and Mechanical Property Verification

Critical dimensions (thread pitch diameter, length under head) are measured pre- and post-exposure to detect material loss. Tensile testing, proof load verification, and torque-tension relationships confirm that mechanical performance remains within specification. Hydrogen embrittlement susceptibility is evaluated through slow strain rate testing or sustained load cracking assessments.

Electrochemical Impedance and Coating Integrity

Advanced evaluations employ electrochemical impedance spectroscopy to quantify coating resistance and capacitance. These measurements detect early-stage degradation before visible corrosion appears. Adhesion testing (cross-hatch, pull-off) validates coating-substrate bonding, while salt fog resistance hours, tested in a salt spray test chamber, are correlated with coating thickness and composition.

Evaluation Method	Parameter Measured	Acceptance Criteria
Visual Inspection	Red rust appearance time	Zero red rust for specified duration
Thread Gauging	Pitch diameter reduction	< 0.05 mm material loss
Tensile Testing	Ultimate strength retention	> 95% of baseline value



Comparing Coated and Uncoated Fasteners Using Test Data

---

Zinc Plating Performance Benchmarks

Electroplated zinc fasteners typically withstand 72-200 hours before red rust appearance, depending on coating thickness and chromate post-treatment. A 10-micrometer zinc layer provides approximately 100 hours protection, while 15 micrometers extends this to 150-200 hours. Zinc-nickel alloy coatings (12-15% nickel) deliver 500-1000 hour performance, representing a 5-10× improvement.

Bare Steel Baseline Degradation Rates

Uncoated carbon steel fasteners develop red rust within 2-8 hours of continuous salt spray exposure. Corrosion progresses rapidly, with thread forms becoming severely degraded by 24 hours. This dramatic contrast validates the necessity of protective systems and establishes baseline data for calculating coating effectiveness factors.

Stainless Steel and Exotic Alloy Resistance

Austenitic stainless steels (304, 316) resist general corrosion but may exhibit pitting after extended exposure, particularly in creviced regions. Precipitation-hardened grades (17-4PH) show vulnerability at grain boundaries. Titanium alloys demonstrate exceptional resistance, withstanding 3000+ hours without visible attack, though cost restricts applications to critical aerospace and medical devices.



Reducing Field Corrosion Failures Through Proper Testing

---

Warranty Cost Reduction Through Design Validation

Automotive manufacturers report that salt fog test chamber validation during development reduces warranty claims by 60-80% for corrosion-related fastener failures. Testing identifies marginal coating specifications, incompatible material pairings, and design features that trap moisture. Early detection allows specification changes before production tooling investment.

Supplier Qualification and Incoming Inspection Protocols

Establishing salt spray performance requirements in procurement specifications enables objective supplier comparison. Periodic testing of production lots verifies coating process control and identifies drift before widespread distribution. Statistical process control charts track test duration performance, triggering corrective action when results approach minimum thresholds.

Accelerated Life Prediction and Maintenance Scheduling

Correlation studies between laboratory test hours and field exposure years enable service life prediction. Marine environments typically require 1000+ hour salt spray resistance for 10-year service, while automotive underbody applications use 720-hour performance for 7-year warranties. These relationships inform maintenance interval determination and component replacement scheduling.

Application Environment	Target Salt Spray Duration	Predicted Service Life
Interior automotive	240 hours	5-7 years
Exterior automotive	720 hours	7-10 years
Marine atmospheric	1000+ hours	10-15 years



Consistent Testing for Small Hardware with LIB Industry Salt Spray Test Chambers​​​​​​​

---

	Model	S-150
	Internal dimensions (mm)	470*590*400
	Overall dimensions (mm)	620*1400*1050
	Temp. Range	Ambient ～ +60 degree
	Temp. Fluctuation	± 0.5 ℃
	Temp. Deviation	± 2.0℃
	Humidity Range	95 % ~ 98 % RH
	Salt Fog Deposition	1～2ml / 80cm2 · h
	Spray Type	Continuous / Periodic
	Heating Element	Nichrome heater
	Salt Fog Collected	Fog collector and fog measure cylinder
	Controller	PID controller
	Material	Glass fiber reinforced plastics
	Standard Configuration	8 round bars and 7 V-shaped grooves

Optimized Chamber Configurations for Fastener Testing

LIB Industry provides salt spray test chambers ranging from 110L to 1600L capacity, accommodating batch testing requirements from prototype validation to production qualification. The S-150 model (110L volume) suits component-level testing, while the S-020 (1600L) enables full assembly verification. Glass fiber reinforced plastic construction ensures chamber longevity despite continuous corrosive exposure.

Precision Environmental Control Systems

PID control maintains temperature within ±0.5°C and humidity between 95-98% RH, ensuring reproducible test conditions. Adjustable spray towers and nozzle configurations meet ASTM B117, ISO 9227, and automotive OEM specifications. Fog collection cups positioned in opposing orientations verify uniform deposition rates of 1-2 mL/80cm²·h across the test chamber volume.

Safety and Automation Features for Unattended Operation

Integrated protection systems prevent humidifier dry-combustion, over-temperature excursions, and water shortage interruptions within the salt spray tester, ensuring stable and continuous operation. Network connectivity enables remote monitoring and data logging, documenting test conditions throughout multi-day exposure cycles. The standardized configuration includes six support bars and five V-shaped grooves, positioning hundreds of fasteners simultaneously while ensuring fog access to all surfaces.



Conclusion

---

Salt spray testing transforms fastener reliability from uncertainty into quantified performance. Standardized exposure conditions reveal coating effectiveness, validate material selections, and predict field service life before product deployment. Manufacturers leveraging accelerated corrosion testing reduce warranty expenses, enhance product reputation, and deliver components that withstand intended environmental challenges throughout operational lifecycles.



FAQ

---

How long should fasteners be tested in a salt spray chamber to simulate 10 years of coastal exposure?

Marine atmospheric environments typically require 1000-1500 hours of continuous neutral salt spray testing to correlate with 10-year field exposure. Actual correlation factors depend on specific microclimate conditions, material systems, and design geometries.

Can salt spray testing predict stress corrosion cracking susceptibility in high-strength fasteners?

Standard salt spray protocols primarily evaluate general corrosion and coating performance. Stress corrosion cracking assessment requires specialized testing combining environmental exposure with sustained tensile loading, typically following ASTM F1624 or similar standards for hydrogen embrittlement evaluation.

What causes inconsistent salt spray test results between different laboratories?

Variations in chamber fog distribution, salt solution preparation, specimen positioning, and ambient temperature control contribute to inter-laboratory differences. Strict adherence to standardized protocols, regular chamber validation using reference specimens, and participation in round-robin testing programs minimize these discrepancies.



Contact LIB Industry for Advanced Salt Spray Testing Solutions

---

As a leading salt spray test chamber manufacturer and supplier, LIB Industry delivers turn-key environmental testing systems globally. Our chambers provide precise corrosion evaluation for fasteners, bolts, and connectors across automotive, aerospace, and marine applications. Contact ellen@lib-industry.com to discuss your testing requirements.

Dust test chambers compliant with IEC 60529 and ISO standards provide manufacturers with controlled environments to evaluate product resistance against particulate ingress. These specialized testing systems replicate harsh conditions where fine talcum powder circulates at specified concentrations, allowing accurate assessment of IP5X and IP6X protection ratings. Compliance testing ensures electronic components, automotive assemblies, and industrial equipment withstand real-world dust exposure without performance degradation. Standardized chambers incorporate precise vacuum systems, temperature control, and calibrated mesh sieves to maintain test consistency across global manufacturing operations.

What Are the Dust Test Requirements in IEC 60529?

---

Understanding IP5X and IP6X Protection Levels

IEC 60529 establishes internationally recognized ingress protection ratings that classify equipment enclosures based on dust resistance capabilities. IP5X designation indicates dust-protected equipment where limited ingress does not interfere with operation, while IP6X represents dust-tight construction preventing any particle penetration. Testing protocols require equipment exposure to circulating talcum powder within enclosed chambers for eight hours under negative pressure conditions.

Talcum Powder Specifications and Particle Distribution

The standard mandates specific talcum powder characteristics: particles must pass through a 75-micron mesh sieve while 90% must pass through a 50-micron mesh. This precise particle size distribution ensures repeatability across different testing facilities. Chamber systems maintain uniform powder concentration through continuous circulation, preventing settlement or agglomeration that could compromise test validity.

Vacuum and Pressure Requirements During Testing

Test specimens undergo evaluation under 20 millibars below atmospheric pressure, created by vacuum systems connected directly to sample enclosures. This negative pressure simulates conditions where equipment operates at elevated temperatures, drawing air and potential contaminants inward. Pressure gauges, regulators, and air filters maintain consistent vacuum levels throughout the eight-hour test duration.



Key ISO Standards Involving Dust Ingress Testing

---

ISO 20653 for Automotive Applications

ISO 20653 extends IEC 60529 principles specifically for road vehicles and their electrical equipment. This standard introduces additional test categories IP5KX and IP6KX, incorporating more rigorous conditions reflecting automotive operating environments. Higher dust concentrations and extended exposure periods verify component durability under continuous road dust exposure experienced throughout vehicle lifespans.

Military and Defense Testing Under MIL-STD-810

Military equipment faces extreme particulate exposure across desert operations and tactical deployments. MIL-STD-810 Method 510.7 establishes blowing dust and sand testing protocols using varied particle sizes from fine talc to coarse sand. Test chambers accommodate these protocols through adjustable dust feeders and enhanced circulation systems capable of suspending heavier particles.

Environmental Simulation Standards Integration

Multiple standards converge within modern testing programs, requiring dust chambers with adaptable configurations. Beyond baseline dust resistance, manufacturers evaluate combined environmental stresses including temperature cycling, humidity exposure, and vibration. Chambers with programmable controls enable sequential testing protocols without specimen transfer, improving data correlation and reducing handling risks.



Differences Between IEC and ISO Dust Test Procedures

---

Test Duration and Cycling Parameters

IEC 60529 specifies continuous eight-hour exposure with constant vacuum application and dust circulation. ISO 20653 automotive variants may require extended durations or cycling patterns alternating between exposure and rest periods. These differences reflect distinct failure mechanisms: consumer electronics primarily face occasional dust intrusion versus automotive components experiencing daily exposure cycles.

Particle Size Distribution Variations

While both standards utilize talcum powder as baseline test media, particle size ranges differ slightly. IEC testing employs talc with 75-micron maximum particle diameter, whereas certain ISO automotive protocols incorporate broader size distributions including particles up to 150 microns. Larger particles simulate road debris and coarser environmental contaminants encountered in vehicle operation.

Pass/Fail Criteria and Inspection Methods

IEC 60529 IP5X permits trace dust quantities provided they do not impair operation or safety, evaluated through visual inspection and functional testing post-exposure. IP6X demands absolute dust exclusion verified through internal examination. ISO standards apply similar criteria but may include additional electrical continuity testing, contact resistance measurements, or accelerated aging protocols following dust exposure.



Configuring Dust Test Chambers for Standards Compliance

---

Chamber Volume and Specimen Accommodation

Standard-compliant chambers range from 800 liters to 2000 liters internal volume, accommodating specimens from small connector assemblies to complete automotive lighting systems. Chamber dimensions must provide adequate clearance around specimens for proper dust circulation without creating dead zones where particles settle. Multiple specimen testing requires sufficient spacing to prevent cross-contamination or circulation interference.

Model	Internal Dimensions (mm)	Volume (L)	Typical Applications
DI-800	800×1000×1000	800	Small electronics, connectors
DI-1000	1000×1000×1000	1000	Mobile devices, instruments
DI-1500	1000×1500×1000	1500	Automotive components, lamps
DI-2000	1000×2000×1000	2000	Large assemblies, multiple specimens

Vacuum System Design and Performance

Compliant vacuum systems incorporate pressure gauges readable to 0.1 millibar accuracy, adjustable regulators maintaining stable negative pressure regardless of specimen leak rates, and filtration preventing talc ingress into pump mechanisms. Connection interfaces must accommodate various specimen geometries through adaptable tubing and sealed fittings. Vacuum capacity should exceed specimen volume by 50% to compensate for minor leakage.

Temperature and Humidity Control Integration

Standards specify ambient to 50°C temperature ranges with humidity below 30% relative humidity to prevent powder clumping. Heating elements integrated within dust proof chamber walls maintain uniform thermal distribution without creating convection currents that disrupt dust circulation patterns. Dehumidification systems remove moisture from recirculated air, preserving talc flowability throughout extended test sequences.



Test Duration, Pressure, and Dust Circulation Control

---

Programmable Timer Functions and Automation

Modern controllers offer separate programmable timers for dust circulation (blowing time) and vacuum application (fight time), each adjustable from zero to 99 hours 59 minutes. Automated sequences eliminate operator intervention, ensuring protocol adherence and documentation accuracy. Pre-programmed profiles store standard test configurations, reducing setup errors and improving laboratory efficiency.

Maintaining Consistent Dust Concentration

Uniform particle suspension requires carefully engineered airflow patterns within chamber volumes. Circulation fans create turbulent mixing without generating high-velocity streams that impact specimens directly. Talc feeders meter powder introduction at controlled rates, compensating for settling and maintaining target concentrations throughout test durations. Mesh sieves positioned at circulation paths continuously remove agglomerates.

Real-Time Monitoring and Data Logging

Advanced systems incorporate sensors tracking vacuum pressure, chamber temperature, circulation fan speed, and elapsed time. Ethernet connectivity enables remote monitoring through networked computers or mobile devices. Data logging systems record parameters at user-defined intervals, creating audit trails demonstrating standards compliance for certification authorities and quality management reviews.

Parameter	Range	Accuracy	Monitoring Frequency
Vacuum Pressure	0-100 mbar	±0.5 mbar	Continuous (1-second intervals)
Chamber Temperature	Ambient-80°C	±0.5°C	10-second intervals
Test Duration	0-99h59m	±1 second	Real-time countdown
Circulation Status	On/Off	Digital signal	Continuous monitoring

Common Non-Compliance Issues in Standardized Dust Testing

---

Powder Agglomeration and Flow Problems

Moisture absorption causes talcum powder clumping, creating irregular particle sizes that invalidate test conditions. Humidity levels exceeding 30% RH or improper storage allow hygroscopic talc to absorb water vapor. Prevention requires sealed powder storage containers, chamber dehumidification, and integrated heating systems maintaining powder temperature above dew point throughout testing cycles.

Inadequate Vacuum Seal Integrity

Leaking specimen interfaces reduce internal pressure below specified levels, altering ingress mechanisms and producing non-representative results. Connection points require proper sealing compounds, correctly sized adapter fittings, and torque specifications preventing over-tightening that deforms gaskets. Pre-test leak checks using pressure decay measurements identify seal failures before committing specimens to full test sequences.

Uneven Dust Distribution Within Chambers

Dead zones and preferential flow paths create concentration gradients where specimens experience varying exposure intensities. Poor chamber design, inadequate circulation capacity, or improper specimen positioning causes non-uniform testing. Solutions include computational fluid dynamics analysis during chamber design, adjustable circulation fan speeds, and standardized specimen mounting procedures documented in laboratory quality systems.



Meet Strict International Standards with LIB Industry Dust Test Chambers

---

Name	dust test chamber
Workroom dimension (mm)	800*800*800 D*W*H
External dimension (mm)	950*3150*1800 D*W*H
Interior Volume (L)	510
Diameter of Turntable (mm)	600
Turntable loads	20kgs Max
Turntable Rotation Speed	0~7r/min (Adjustable)
Internal Diameter of IPX5 Nozzle	6.3 mm
Internal Diameter of IPX6 Nozzle	12.5 mm
Water Flow Rate IPX5/ IPX6	12.5L/min ±5% / 100L/min ±5%
Controller	Programmable color LCD touch screen controller
	Ethernet connection, PC Link, USB
Build-in Water Tank(mm)	370*375*950
View Window Size(mm)	475*475

Advanced Engineering for Compliance Testing

LIB dust test chambers incorporate funnel-shaped chamber bottoms eliminating powder accumulation points that compromise test repeatability. The sloped stainless steel interior facilitates complete talc recovery between tests, reducing waste and ensuring fresh powder for each protocol execution. Mirror-finished 304 stainless steel construction prevents corrosion and surface roughness that could trap particles or contaminate samples.

Integrated Safety and Observation Features

Testing visibility remains critical for monitoring specimen behavior during exposure cycles. Dual-layer observation windows with integrated wiper systems maintain clear sight lines despite circulating talc. Interior LED illumination provides even lighting without introducing heat that affects chamber thermal stability. Electromagnetic door locks prevent accidental opening during pressurized testing, while emergency stop controls positioned at multiple access points ensure operator safety.

Comprehensive Support and Custom Solutions

Every LIB chamber includes three-year warranty coverage with lifetime technical support through global service networks. Certified technicians provide installation, calibration, and operator training ensuring immediate laboratory readiness. Engineering teams develop custom configurations for non-standard testing requirements, incorporating specialized specimen interfaces, enhanced temperature ranges, or multi-chamber automation systems for high-volume production testing operations.

Service Component	Standard Offering	Premium Support
Warranty Coverage	3 years parts and labor	Extended 5-year coverage
Technical Support	Business hours email/phone	24/7 global emergency response
Calibration Services	Annual recertification	Quarterly validation visits
Training Programs	Initial operator instruction	Advanced maintenance workshops

Conclusion

---

Standardized dust testing under IEC 60529 and ISO protocols demands precision equipment engineered for compliance and repeatability. Modern chambers integrate sophisticated control systems, refined powder management, and comprehensive monitoring capabilities that transform complex standards into reproducible laboratory procedures. Selecting chambers with proven compliance records, robust construction, and manufacturer support infrastructure ensures testing programs meet certification requirements while maintaining operational efficiency across product development lifecycles.

FAQ

---

What is the difference between IP5X and IP6X dust protection ratings?

IP5X permits limited dust ingress that does not interfere with equipment operation, while IP6X requires complete dust exclusion. IP6X testing demands more rigorous sealing and undergoes identical test procedures but applies stricter pass criteria during post-exposure inspection.

How often should talcum powder be replaced in dust test chambers?

Replace talc after every test cycle or when moisture absorption causes visible clumping. Reusing powder introduces particle size variations and moisture contamination that compromise standardized conditions. Fresh pharmaceutical-grade talc ensures consistent 50-75 micron particle distribution required by testing protocols.

Can one chamber accommodate both IEC 60529 and ISO 20653 testing protocols?

Quality chambers support both standards through programmable controls adjusting test duration, pressure levels, and circulation patterns. Verify chamber specifications include required temperature ranges, vacuum capacity, and mesh sieve compatibility for particle size variations between automotive and general industrial testing standards.

Partner with LIB Industry, your trusted dust test chamber manufacturer and supplier, for equipment engineered to international standards. Contact our technical team at ellen@lib-industry.com to discuss custom solutions for your testing requirements.

UV test machines in coating and paint aging applications simulate real-world weathering conditions to evaluate protective performance and longevity. These specialized chambers expose coated samples to ultraviolet radiation, moisture, and controlled temperature cycles, accelerating months or years of outdoor deterioration into weeks of testing. ASTM G154 UV test machines help coating manufacturers predict color stability, gloss retention, and film integrity before products reach the market, reducing costly field failures and ensuring formulations meet demanding architectural, automotive, and industrial performance standards.



Why Coatings and Paints Require UV Aging Evaluation?

Understanding Photodegradation in Coating Systems

Coatings face relentless environmental assault from ultraviolet radiation, which triggers photochemical reactions within polymer binders. UV radiation absorbed by chromophores releases energy that cleaves bonds in paint films and generates free radicals, initiating a cascade of degradation mechanisms. These free radicals attack polymer chains, progressively weakening the coating matrix and compromising protective functions. Photodegradation represents the primary failure mode for exterior coatings, making UV aging evaluation essential during formulation development.

Economic Impact of Premature Coating Failure

Unexpected coating failures generate substantial costs across industries. Building facades requiring premature repainting disrupt operations and drain maintenance budgets. Automotive manufacturers face warranty claims when vehicle finishes deteriorate prematurely. Industrial equipment exposed to harsh environments demands reliable protective coatings to prevent corrosion and maintain operational integrity. UV aging testing using ASTM G154 UV test machines enables manufacturers to identify weaknesses before production, significantly reducing these financial risks while building customer confidence through proven durability claims.

Regulatory and Performance Standards

Modern coating applications must satisfy rigorous industry specifications. Architectural coatings face AAMA standards requiring demonstrated weatherability. Automotive finishes must meet OEM performance criteria. Industrial coatings need verification against NACE and ISO requirements. ASTM G154 is integral to various test methods, including ASTM D1248, ASTM D5208, and ASTM D5894. These standards mandate accelerated aging validation, making UV test equipment indispensable for compliance documentation and market acceptance.



Common UV-Induced Failures in Coating Systems

Chalking and Surface Degradation

Chalking occurs when polymeric chains degrade and break apart when exposed to UV rays, leaving residue that forms white dust on the paint film's surface. This phenomenon results from binder photodegradation, where polymer fragments migrate to the coating surface as loose powder. Chalking not only compromises aesthetics but also exposes underlying layers to accelerated deterioration. Different resin chemistries exhibit varying susceptibility - acrylics generally resist chalking better than alkyds or polyesters. ASTM G154 UV test machines replicate this degradation pathway through controlled UV exposure cycles, enabling quantitative assessment of chalk resistance.

Gloss Loss and Surface Roughness

UV radiations can split polymer chains into smaller fragments until they disappear, eventually resulting in loss of gloss and the release of free pigment on the paint surface. Gloss retention serves as a sensitive indicator of coating degradation. As binder polymers fragment, surface microtopography roughens, scattering reflected light and diminishing the characteristic shine. High-performance coatings maintain gloss levels above threshold values specified by manufacturers. Testing protocols measure gloss at standardized angles throughout exposure periods, tracking degradation rates that predict service life expectations.

Color Shift and Fading

Pigment photostability determines coating color retention under UV exposure. Organic pigments vary dramatically in lightfastness - yellows and reds typically fade faster than blues and earth tones. UV degradation can lead to sharp changes in color in paints with high colorant loading, such as when green turns into blue as yellow fades. Inorganic pigments generally demonstrate superior UV stability. Color change measurements quantified through spectrophotometry provide objective data on appearance retention. ASTM G154 UV test machines accelerate color degradation processes, enabling comparative evaluation of pigment systems and binder chemistries.

Failure Mode	Primary Cause	Visual Indicators	Performance Impact
Chalking	Polymer chain scission	White powder surface	Reduced gloss, barrier loss
Gloss Loss	Binder degradation	Dull, matte appearance	Surface roughness increase
Color Fading	Pigment photodegradation	Hue shift, lightening	Aesthetic failure
Cracking	Cross-link density changes	Surface fissures	Moisture penetration pathway
Delamination	Adhesion loss	Coating separation	Complete protective failure

ASTM G154 Test Cycles for Coating and Paint PerformanceUnderstanding Standardized Exposure Cycles

Most ASTM G154 cycles alternate between 4-hour or 8-hour periods of light and 4-hour periods of condensation, though variations exist for specific applications. Cycle 1 employs UVA-340 lamps with 8 hours of light at 60°C black panel temperature followed by 4 hours of condensation at 50°C. Cycle 4 uses similar UVA-340 lamps but with 4-hour light periods alternating with 4-hour condensation. Cycle 5 extends light exposure to 20 continuous hours. These standardized protocols ensure reproducibility across laboratories and enable meaningful performance comparisons between coating systems.

Selecting Appropriate UV Lamp Types

The ASTM G154 UV test machine accepts different fluorescent lamp types matching specific weathering simulation needs. UVA-340 lamps simulate the UV portion of sunlight in the 295-365 nm range, closely replicating the spectrum that causes most polymer degradation. UVB-313 lamps deliver shorter wavelengths for accelerated stress testing, revealing potential weaknesses faster than natural exposure. For architectural coatings requiring realistic weathering simulation, UVA-340 lamps provide optimal spectral matching. Automotive and industrial applications may employ UVB-313 for comparative screening during formulation optimization.

Moisture Cycling Mechanisms

Condensation cycles represent the most common moisture delivery method in ASTM G154 testing. Warm, saturated air generated within the chamber causes condensation to form directly and reform continuously on the material's surface because cool laboratory air across the back side of specimens creates a temperature differential. This mechanism realistically simulates overnight dew formation. Spray cycles deliver direct water impingement, creating thermal shock effects similar to sudden rainfall. These moisture exposures synergize with UV radiation, accelerating hydrolytic degradation pathways that occur in actual outdoor environments.

Assessing Gloss Retention, Color Change, and CrackingGloss Measurement Methodologies

The gloss of a protective coating changes over time due to aging and exposure to ultraviolet light from the sun. Standardized gloss measurements employ specular reflectance at 20°, 60°, or 85° angles depending on initial gloss levels. High-gloss coatings benefit from 20° measurements providing superior differentiation. Low-gloss finishes require 85° geometry for meaningful resolution. Gloss retention calculations express final measurements as percentages of initial values. Tracking gloss decline curves throughout exposure enables prediction of performance thresholds and comparison between competitive formulations tested under identical ASTM G154 UV test machine conditions.

Quantifying Color Change

Spectrophotometric analysis provides objective color change data through CIE Lab color space measurements. Delta E calculations quantify total color difference between original and aged specimens, with values above 3.0 generally considered perceptible to human observers. Breaking down color shifts into lightness, chroma, and hue components reveals specific degradation mechanisms. Lightness increases indicate pigment loss or binder degradation. Chroma reductions reflect color saturation decline. Hue shifts demonstrate selective pigment fading. ASTM G154 testing generates comprehensive color change data supporting formulation decisions and performance claims.

Crack Detection and Propagation Analysis

Surface cracking manifests when polymer cross-link density changes exceed coating flexibility limits. Film embrittlement occurs due to polymer changes from thermal cycles of day and night, eventually breaking down polymer chains and deteriorating physical properties. Visual crack assessment employs standardized rating scales documenting crack density, width, and pattern distribution. Microscopic examination reveals crack initiation sites and propagation pathways. Advanced techniques including digital image analysis quantify crack networks objectively. Identifying crack onset during ASTM G154 UV testing equipment exposures establishes formulation robustness boundaries and predicts service life expectations.

Assessment Method	Measurement Equipment	Key Parameters	Acceptance Criteria
Gloss Retention	Glossmeter (20°/60°/85°)	Initial vs. final gloss units	>80% retention typical
Color Change	Spectrophotometer	ΔE, ΔL, Δa, Δb values	ΔE <3.0 for high performance
Chalk Rating	ASTM velvet cloth method	0-10 scale	Grade 8 minimum standard
Crack Assessment	Visual inspection/microscopy	Crack density and width	No cracking benchmark
Adhesion	Cross-hatch or pull-off test	Post-exposure bond strength	>80% retention required

Influence of Substrate and Pretreatment on Aging ResultsSubstrate Material Effects

Coating performance during ASTM G154 UV test machine exposure varies significantly with substrate composition. Metal substrates conduct heat differently than plastic panels, affecting temperature gradients within coating films. Aluminum exhibits high thermal conductivity while composites provide insulation. These thermal differences influence cure kinetics, cross-link density development, and stress distribution during temperature cycling. Wood substrates introduce moisture transport variables and dimensional stability considerations. Testing on representative substrates ensures aging results accurately predict field performance across intended application environments.

Surface Preparation Impact

Exterior paints and coatings are evaluated for color retention, chalking resistance, and overall durability, with surface preparation playing a crucial role. Proper substrate cleaning removes contaminants interfering with adhesion. Surface roughness influences mechanical interlocking between coatings and substrates. Chemical conversion treatments on metals create protective layers enhancing corrosion resistance. Primers establish uniform surfaces promoting topcoat adhesion and barrier properties. ASTM G154 testing protocols specify substrate preparation requirements ensuring consistency across test specimens. Variations in pretreatment procedures can dramatically alter UV aging outcomes, necessitating careful standardization during comparative evaluations.

Coating Thickness Considerations

Film thickness influences UV degradation rates through several mechanisms. Thinner coatings concentrate UV radiation across smaller material volumes, accelerating photodegradation. Thicker films provide greater UV absorption depth, protecting underlying layers. However, excessive thickness increases internal stress during temperature cycling, potentially promoting cracking. Optimal film thickness balances UV protection, mechanical properties, and economic considerations. ASTM G154 UV test machine evaluation across thickness ranges identifies performance sweet spots and establishes application specifications for field use.

Using UV Aging Data to Optimize Coating Formulations

Resin System Selection

UV aging data generated through ASTM G154 testing guides resin chemistry selection for specific applications. Acrylics are often used in the most demanding applications where outdoor weatherability is essential because when synthesized properly, acrylics are essentially transparent to UV radiation. Polyurethanes deliver excellent abrasion resistance and gloss retention. Fluoropolymers provide exceptional long-term weatherability for architectural applications. Epoxies offer strong adhesion and chemical resistance but limited UV stability. Comprehensive aging databases comparing resin systems under standardized conditions enable formulation scientists to balance performance requirements, cost constraints, and processing characteristics.

Pigment and Additive Optimization

UV absorbers and hindered amine light stabilizers (HALS) protect coatings through complementary mechanisms. UV absorbers preferentially absorb damaging radiation, dissipating energy harmlessly as heat. HALS scavenge free radicals generated during photodegradation, interrupting degradation cascades. Optimizing stabilizer packages requires systematic ASTM G154 UV test machine evaluation across concentration ranges and additive combinations. Pigment selection balances color requirements with UV stability characteristics. Inorganic pigments typically demonstrate superior lightfastness compared to organic alternatives. Testing guides pigment choices for color-critical applications where appearance retention justifies premium formulation costs.

Formulation Iteration Strategies

Accelerated UV aging testing enables rapid formulation iteration cycles impossible through outdoor exposure alone. Material selection assists in identifying appropriate materials for outdoor or UV-exposed environments, with iterative testing refining candidate formulations systematically. Screening experiments compare multiple variables simultaneously, identifying promising directions efficiently. Subsequent optimization testing fine-tunes successful candidates. Statistical experimental design maximizes information extraction from limited testing resources. ASTM G154 UV test machines operating continuously generate comparative data supporting informed formulation decisions, accelerating development timelines and reducing market introduction costs.

Formulation Variable	Performance Impact	Testing Strategy	Optimization Target
Resin Type	Determines base durability	Comparative screening	Best weatherability/cost ratio
UV Stabilizer Level	Controls degradation rate	Concentration study	Minimum effective dose
Pigment Selection	Affects color retention	Lightfastness ranking	Maximum stability in color range
Film Thickness	Influences protection/stress	Thickness series	Optimal performance window
Cross-link Density	Balances hardness/flexibility	Cure condition variation	Crack resistance threshold

Superior Aging Simulation for Coatings with LIB Industry UV Test Machines

Model	UV-SI-260
Internal Dimension (mm)	450*1170*500
Overall Dimension (mm)	680*1300*1500
Irradiation Source	Fluorescent UV lamps (8) - 40 W
Temperature Range	Ambient ～ 90 ℃ ±2℃
Black Panel Temperature (BPT)	35 ～ 80 ℃
Humidity Range	≥95% RH
Bandwidth	290 ~ 400 nm
Irradiance Control	0.3~20 W/㎡
Distance of Specimen and lamp	50 mm
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller
	Ethernet connection, PC Link,USB
Water Supply System	Automatic water supply, Water pu

Advanced Irradiance Control Systems

LIB Industry's ASTM G154 UV test machine incorporates genuine UVA-340 and UVB-313 fluorescent lamps reproducing the ultraviolet spectrum accurately across the 290-400 nm bandwidth. Eight evenly distributed lamps ensure uniform irradiance across all specimen positions, eliminating test deviation and improving result repeatability. Adjustable irradiance control spans 0.3 to 20 W/m², with automatic monitoring and feedback maintaining stable light intensity throughout extended testing periods. Precise irradiance control enables correlation between accelerated testing and actual outdoor exposure, supporting confident service life predictions and performance claims.

Comprehensive Environmental Simulation

Temperature control ranging from ambient to 90°C with ±0.5°C accuracy ensures consistent test conditions. Rapid heating and cooling capabilities enable temperature change rates up to 5°C per minute, facilitating efficient cycling between exposure stages. Integrated condensation systems reproduce nighttime moisture and dew formation critical for evaluating material degradation. Programmable water spray nozzles create thermal shock effects simulating sudden rainfall. This multi-factor environmental simulation replicates synergistic weathering mechanisms occurring outdoors, providing realistic degradation patterns that correlate with field performance far better than single-factor exposures.

Operational Excellence and Support

LIB Industry's ASTM G154 UV test machine features pre-programmed test cycles compliant with international standards, minimizing setup time and reducing operator error. Intuitive touchscreen controls enable easy parameter setting and real-time monitoring. Test data exports effortlessly via USB or LAN connectivity for analysis and reporting. Built-in lamp management systems track operating hours, providing automatic replacement reminders maintaining consistent testing performance. Comprehensive three-year warranty coverage and lifetime technical support ensure uninterrupted operation. ISO 9001 quality management certification and third-party testing validation demonstrate commitment to manufacturing excellence and customer satisfaction.

Conclusion

UV test machines represent indispensable tools for coating and paint development, enabling accelerated evaluation of weatherability before market introduction. ASTM G154 UV test machines simulate complex environmental interactions - ultraviolet radiation, moisture cycles, and temperature fluctuations - that govern coating service life. Systematic testing reveals failure mechanisms, guides formulation optimization, and validates performance claims. LIB Industry delivers advanced testing solutions combining precise environmental control, intuitive operation, and comprehensive support, empowering coating manufacturers to develop durable products meeting demanding application requirements.

FAQWhat exposure duration in an ASTM G154 UV test machine equals one year of outdoor weathering?

Correlation between accelerated and natural weathering depends on multiple factors including geography, coating chemistry, and test cycle selection. Through comparison of IR spectrum changes across automotive coatings, 1250 hours of certain test conditions has been shown equivalent to one year in south Florida. Establishing site-specific correlations requires parallel testing with actual outdoor exposure.

Can ASTM G154 UV test machines evaluate both organic and inorganic coatings?

Yes, ASTM G154 protocols accommodate diverse coating systems including organic polymers, hybrid formulations, and inorganic finishes. Different materials exhibit unique photodegradation mechanisms, requiring appropriate assessment techniques. Visual evaluation, spectroscopic analysis, and mechanical property testing capture degradation manifestations specific to each coating type under standardized UV exposure conditions.

How often should UV lamps be replaced in an ASTM G154 UV test machine?

Fluorescent UV lamp output gradually declines with operating hours, affecting irradiance levels and spectral distribution. Most manufacturers recommend lamp replacement after approximately 1,600 to 5,000 operating hours depending on lamp type and operating intensity. Regular irradiance monitoring verifies output consistency, and automated tracking systems alert operators when replacement becomes necessary to maintain testing accuracy.

Ready to elevate your coating development with precision UV aging testing? Contact LIB Industry, a leading UV test chamber manufacturer and supplier, to discuss your specific testing requirements and discover how our ASTM G154 UV test machines can accelerate your formulation optimization. Reach our technical team at ellen@lib-industry.com for detailed specifications and application guidance.

Printed circuit board assemblies form the backbone of modern electronics, from smartphones to aerospace systems. These intricate assemblies face relentless thermal challenges throughout their operational lifetime. Temperature cycling testing conducted in a temperature cycling chamber reveals hidden vulnerabilities that standard ambient testing cannot detect. Through controlled thermal transitions, engineers identify solder joint fatigue, component delamination, and material incompatibilities before products reach end users. This validation process protects brand reputation, reduces warranty costs, and ensures safety-critical systems perform reliably across their intended temperature ranges. Understanding thermal cycling's role in PCB validation separates products that merely function from those that endure.



Thermal Expansion and Contraction Effects on PCBs

---

Material Coefficient Mismatch Creates Mechanical Stress

Different materials within a PCB assembly expand and contract at varying rates when exposed to temperature changes. The coefficient of thermal expansion (CTE) difference between copper traces, FR-4 substrate, solder, and component packages generates internal mechanical stress. During heating cycles, materials with higher CTE values expand more aggressively, creating tensile and compressive forces at material interfaces.

Solder Joint Vulnerability Under Repeated Cycling

Solder connections represent the weakest link in thermal cycling scenarios. The repeated expansion-contraction cycle induces fatigue in these joints, particularly at ball grid array (BGA) and chip-scale package (CSP) connections. Microscopic cracks initiate at stress concentration points and propagate with each thermal excursion. Lead-free solders, while environmentally friendly, exhibit reduced ductility compared to traditional tin-lead formulations, making them more susceptible to thermal fatigue.

Through-Hole Plating and Via Barrel Integrity

Temperature variations stress the plated copper barrels within vias and through-holes. The z-axis expansion of the substrate material differs from the copper plating's thermal response. This mismatch can separate the plating from the substrate wall, creating intermittent electrical connections or complete circuit failures. High-aspect-ratio vias in thick PCBs face particularly severe stress concentrations.



Common Failure Modes in PCB Assemblies Under Thermal Stress

---

Intermetallic Compound Growth and Embrittlement

Elevated temperatures accelerate intermetallic compound formation at solder-to-pad interfaces. While some intermetallic layer growth strengthens the bond initially, excessive thickness creates brittle structures prone to fracture. Temperature cycling accelerates this aging process, revealing what years of ambient storage might eventually produce. Different solder alloys exhibit varying growth rates and brittleness characteristics.

Component Package Cracking and Delamination

Encapsulated components experience internal stress from CTE mismatches between silicon die, die attach materials, bond wires, and molding compounds. Temperature excursions can cause package cracking, typically visible near corners or along thin sections. Moisture absorbed during storage compounds the problem, as trapped water vapor expands during heating, potentially causing "popcorning" where packages literally explode during reflow or testing.

Conductive Anodic Filament Formation

Combined thermal and humidity stress creates conditions for electrochemical migration. Metal ions migrate through the PCB substrate between conductors at different electrical potentials, forming conductive pathways. Temperature cycling in a temp cycle chamber with controlled humidity exposure accelerates this failure mechanism, which might otherwise remain dormant for years until field conditions align perfectly.

Failure Mode	Primary Cause	Typical Detection Time	Severity Level
Solder Joint Fatigue	CTE Mismatch	100-500 cycles	High
Package Cracking	Thermal Shock	50-200 cycles	Critical
Via Barrel Separation	Z-axis Expansion	200-1000 cycles	Medium
Intermetallic Embrittlement	Elevated Temperature	500+ cycles	Medium-High
Conductive Filament Growth	Combined Thermal-Humidity	300-800 cycles	High



Temperature Cycling Test Standards for Electronics

---

IPC-9701 Performance Test Methods

The IPC-9701 standard provides comprehensive guidance for accelerated reliability testing of printed board assemblies. This framework defines temperature cycling profiles, chamber requirements, and acceptance criteria. Test conditions typically range from -40°C to +125°C with specified dwell times and transition rates. The standard acknowledges that different application environments require tailored test parameters rather than one-size-fits-all approaches.

JEDEC JESD22-A104 Standards for IC Packages

Semiconductor manufacturers follow JEDEC JESD22-A104 guidelines specifically addressing temperature cycling for integrated circuit packages. These protocols establish test conditions from -65°C to +150°C with controlled ramp rates. The standard distinguishes between different package types and their expected cycling tolerance. Condition classifications (A through G) represent varying severity levels matching anticipated field environments.

Automotive AEC-Q100 Qualification Requirements

Automotive electronics face particularly demanding thermal environments. The AEC-Q100 standard mandates temperature cycling from -40°C to +150°C for a minimum of 1,000 cycles. Automotive-grade components must demonstrate zero failures under these conditions. The qualification addresses not just survival but maintained electrical parameters throughout cycling. This stringent requirement reflects the safety-critical nature and extended service life expected in automotive applications.



Optimizing PCB Design Based on Thermal Test Results

---

Component Placement and Thermal Gradient Management

Test data reveals which board locations experience the most severe thermal gradients. Strategic component placement positions temperature-sensitive elements in thermally stable zones. High-power components should be distributed to avoid localized hot spots. Thermal imaging during cycling tests identifies problematic areas requiring design modifications. Symmetrical layouts often demonstrate better thermal balance than asymmetrical configurations.

Material Selection for Improved CTE Matching

Test failures frequently drive material specification changes. Selecting substrate materials with CTE values closer to component packages reduces interface stress. High-Tg laminates maintain mechanical properties at elevated temperatures better than standard FR-4. Metal-core PCBs provide excellent thermal conductivity for power electronics. Polyimide flex circuits tolerate repeated flexing during thermal expansion without cracking rigid substrates would fail.

Solder Alloy and Reflow Profile Optimization

Thermal cycling results guide solder alloy selection. Some lead-free formulations demonstrate superior fatigue resistance despite lower ductility. Reflow profile adjustments improve solder joint microstructure, enhancing thermal cycling performance. Controlled cooling rates after reflow affect grain structure and ultimately fatigue life. Selective use of different solder alloys on the same assembly may optimize reliability for specific component types.

Design Parameter	Impact on Thermal Performance	Optimization Strategy
Component Spacing	Affects local thermal gradients	Minimum 3mm between heat-generating components
Copper Weight	Influences thermal conductivity	2oz copper for power distribution layers
Via Count	Improves thermal transfer	Minimum 4 thermal vias per power component
Solder Mask Thickness	Affects stress distribution	20-30μm for optimal protection without brittleness



Combined Thermal and Mechanical Stress in PCB Evaluation

---

Vibration During Temperature Transitions

Real-world applications rarely subject electronics to thermal stress alone. Automotive, aerospace, and industrial equipment experience simultaneous vibration and thermal cycling. Testing in a temperature cycling test chamber reveals failure modes invisible in separate tests. Solder joints weakened by thermal cycling fail sooner under vibration. Resonant frequencies shift with temperature changes, potentially exciting previously stable structures.

Shock Loading at Temperature Extremes

Materials exhibit different mechanical properties across temperature ranges. Polymers become brittle at low temperatures while metals soften at elevated temperatures. Impact testing at various temperature points identifies vulnerable temperature zones. Drop tests on temperature-conditioned assemblies simulate field scenarios like cold-start shipping impacts or handling of hot equipment during maintenance.

Humidity Cycling with Thermal Variation

Humidity amplifies several thermal failure mechanisms. Moisture absorption changes dielectric properties and enables electrochemical corrosion. The combination of thermal cycling and humidity creates aggressive test conditions exceeding either stressor individually. Temperature humidity bias (THB) testing applies electrical bias simultaneously with thermal-humidity cycling, accelerating migration failures that might require decades to manifest under ambient conditions.



Improving Long-Term Reliability of PCB Assemblies

---

Accelerated Life Testing Correlation to Field Performance

Temperature cycling chambers enable accelerated reliability prediction through the Arrhenius relationship and Coffin-Manson equation. These models correlate accelerated test cycles to field years based on activation energy and stress levels. Statistical analysis of cycling test results establishes confidence intervals for projected field reliability. Proper acceleration factor calculation prevents under-testing that misses latent failures or over-testing that introduces unrealistic failure modes.

Failure Analysis Driving Design Iteration

Systematic analysis of cycling test failures feeds continuous improvement. Cross-sectioning failed samples reveals crack initiation points and propagation paths. Scanning electron microscopy examines intermetallic layers and void formation. Energy-dispersive X-ray spectroscopy identifies contamination or material migration. These insights drive targeted design changes rather than broad, unfocused modifications that may not address root causes.

Qualification Testing Versus Ongoing Reliability Monitoring

Initial design qualification establishes baseline capability, but ongoing monitoring ensures manufacturing consistency. Periodic temperature cycling of production samples detects process drifts before field failures occur. Statistical process control charts track cycling performance over time. Supplier changes, material substitutions, or equipment modifications trigger requalification testing to validate continued reliability.

Reliability Metric	Calculation Method	Target Value	Business Impact
Mean Cycles to Failure	Weibull analysis of test data	>1500 cycles	Warranty cost reduction
Characteristic Life	63.2% failure point	>2000 cycles	Extended service intervals
Activation Energy	Arrhenius plot slope	>0.7 eV	Field life prediction accuracy



Ensure Circuit Board Reliability with LIB Industry Temperature Cycling Chambers

---

	Name	Temperature Cycling Chamber
	Model	TH-100
	Temperature range	-20℃ ～+150 ℃
	Low type	A: -40℃ B:-70℃ C -86℃
	Humidity Range	20%-98%RH
	Temperature deviation	± 2.0 ℃
	Heating rate	3 ℃ / min
	Cooling rate	1 ℃ / min
	Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
	Exterior material	Steel Plate with protective coating
	Interior material	SUS304 stainless steel
	Standard configuration	1 Cable hole (Φ 50) with plug; 2 shelves
	Timing Function	0.1~999.9 (S,M,H) settable

Precision Control for Repeatable Testing

LIB Industry temperature cycling chambers deliver controlled thermal transitions essential for reliable PCB testing. The TR5 series maintains temperature within ±0.5°C through advanced PID control systems and PT100 Class A sensors providing 0.001°C resolution. Programmable ramp rates from 5°C to 15°C per minute accommodate different test protocols. Uniform temperature distribution ensures consistent sample exposure across the entire working volume, eliminating hot or cold spots that compromise test validity.

Comprehensive Safety Features for Valuable Samples

Protecting test samples requires redundant safety systems. Independent hardware temperature limiters prevent thermal runaway beyond software control limits. Optional smoke detection and fire suppression integration addresses battery and high-energy component testing. Pressure relief valves automatically compensate for internal pressure changes during rapid temperature transitions. These features protect not just samples but also maintain test continuity by preventing chamber damage.

Data Management Meeting Regulatory Requirements

Automated data logging captures complete thermal profiles with timestamps for full test traceability. Ethernet connectivity enables remote monitoring through web interfaces or mobile applications. All data storage complies with FDA 21 CFR Part 11 standards, providing audit trails required for medical device and pharmaceutical electronics qualification. One-click programming generates complex thermal cycling profiles with up to 100 preset cycles, eliminating manual programming errors.



Conclusion

---

Temperature cycling validation stands as an indispensable element of modern PCB assembly qualification. The controlled thermal stress environment reveals material incompatibilities, design weaknesses, and manufacturing defects that ambient testing cannot detect. Through systematic cycling protocols aligned with industry standards, engineers predict field reliability, optimize designs, and protect brand reputation. As electronics proliferate into increasingly demanding applications - from automotive electrification to extreme-environment IoT deployment - thermal cycling testing becomes not merely recommended but essential.



FAQ​​​​​​​

---

How many temperature cycles do PCB assemblies typically require for qualification testing?

Standard qualification requires 500-1000 cycles minimum, though automotive applications demand 1000+ cycles per AEC-Q100. Actual requirements depend on application environment severity, expected service life, and acceptable failure rates. Accelerated testing correlates chamber cycles to field years through established reliability models.

What temperature range should be used for PCB thermal cycling tests?

Most electronics undergo cycling between -40°C and +125°C, covering commercial and industrial temperature grades. Automotive and military specifications extend ranges to -55°C or +150°C. The selected range should exceed operational extremes by 10-20°C to reveal marginal designs before field deployment.

Can temperature cycling tests replace long-term field testing?

Temperature cycling provides accelerated reliability assessment but supplements rather than replaces field validation. Chamber testing reveals thermally-induced failure modes quickly, while field testing captures usage patterns, environmental combinations, and failure modes beyond pure thermal stress. Combined approaches optimize reliability validation efficiency.

LIB Industry, a leading temperature cycling chamber manufacturer and supplier, delivers precision testing solutions for electronics qualification. Our TR5 series chambers provide the temperature control, safety features, and data management capabilities your PCB reliability program demands. Contact our team at ellen@lib-industry.com to discuss your specific testing requirements and discover how our chambers support your quality objectives.
